Steel for forming
Our cold-rolled forming steels are available in a wide range of grades and corrosion-resistant coatings. Each grade is designed for specific applications and comes with a choice of surface quality. Extensive dimensional choice provides opportunities for cutting waste and maximising yield.
Our range of forming grades is available in both zinc coated and MagiZinc® (zinc-magnesium) coated. MagiZinc improves corrosion resistance with half the thickness of conventional zinc coatings, increasing yield, reducing cost and facilitating stronger, lighter products.
Applications

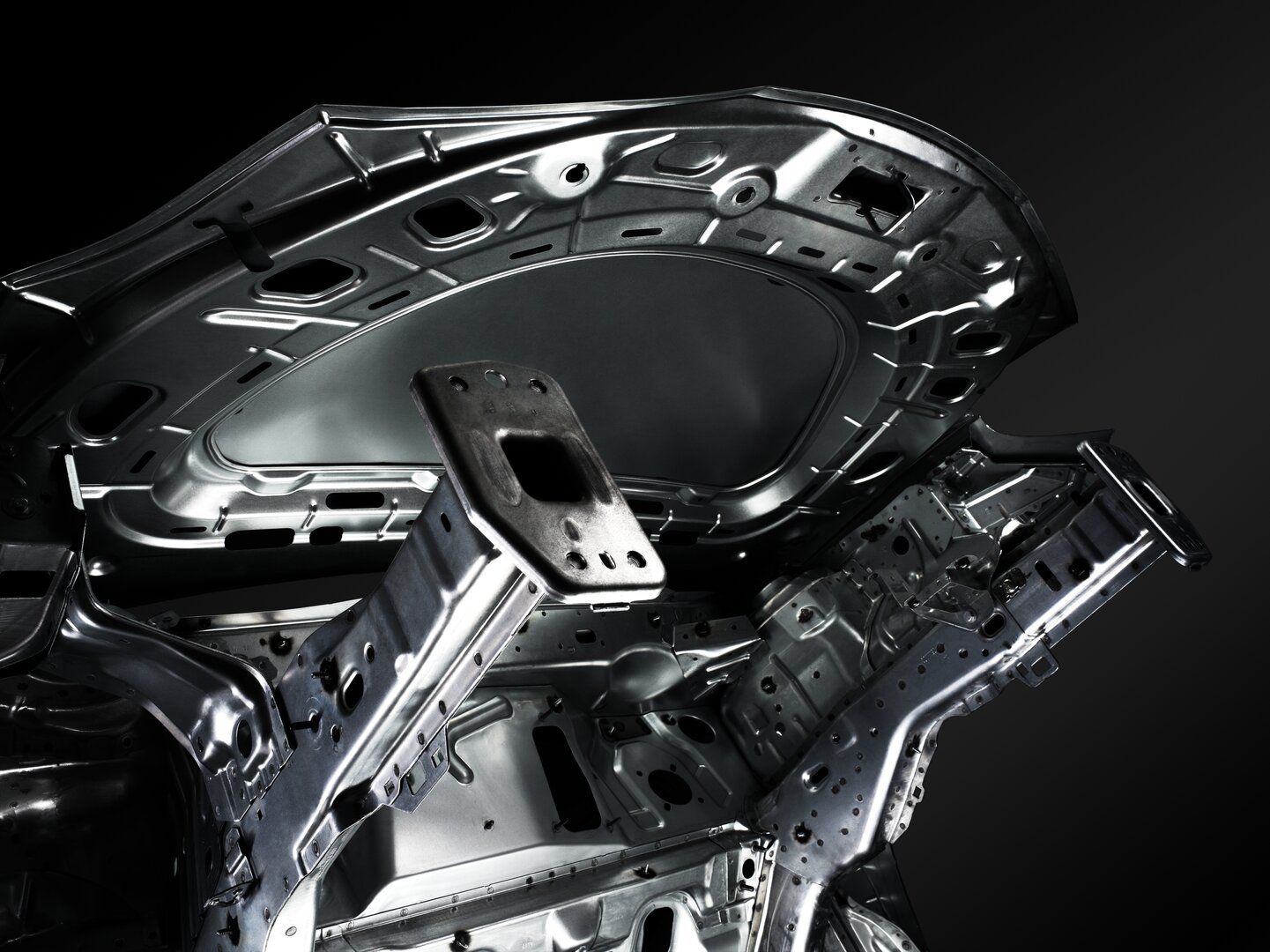

- Automotive components
- Building components
- Domestic appliances
- Tubes and sections
EN-Product-Metallic coated-Forming-DX51D+Z/+ZM TSUK
EN-Product-Metallic coated-Forming-All Grades OverviewTSUK
Overview
With MagiZinc® you can manufacture lighter products with higher strength thanks to the improved corrosion protection and at the same time increase the production volume and further reduce costs thanks to the better processing properties.
Relationship with standards
Metallic coated steel for forming complies with the following European standard
| European standard | VDA standard |
|---|---|
| EN 10346: 2015 | VDA 239-100-16 |
| DX51D+Z/+ZF/+ZM | - |
| DX52D+Z/+ZF/+ZM | CR1-GI/GA/ZM |
| DX53D+Z/+ZF/+ZM | CR2-GI/GA/ZM |
| DX54D+Z/+ZF/+ZM | CR3-GI/GA/ZM |
| DX56D+Z/+ZF/+ZM | CR4-GI/GA/ZM |
| DX57D+Z/+ZM | CR5-GI/ZM |
| DX58D+Z 1 | - |
Galvannealed (ZF/GA) coatings and DX58D+Z are produced in the Netherlands. For further information click here.
1. Not in standard. Tata Steel’s own specification.
EN-Product-Metallic coated-All Grades Coatings Surface aspectsTSUK
Coatings
Three types of metallic coating are available:
Pure zinc
Galvanised steel (Z/GI) is coated with an almost pure zinc coating (>99% zinc).
Zinc-iron alloy
Produced in the Netherlands. For further information click here.
MagiZinc
MagiZinc steel (ZM) is coated with a zinc coating containing additional magnesium and aluminium.
Coating weight
| Coating | Minimum | Maximum |
|---|---|---|
| Pure zinc (Z/GI) | 90 (6 µm/side) | 275 (20 µm/side) |
| MagiZinc (ZM)1 | 70 (5 µm/side) | 310 (22 µm/side) |
Coating weight measured in g/m2 double-sided (µm, per side).
Surface quality
Surface quality complies with standard: EN 10346:2015. Galvanised steels are available in surface quality A, B or C.
Also, Serica FLO® surface quality produced in the Netherlands. For further information click here.
Surface quality A: as coated surface
Imperfections such as pimples, marks, scratches, pits, variations in surface appearance, dark spots, stripe marks and light passivation stains are permissible.
Stretch levelling breaks or run-off marks may appear. Coil breaks and stretcher strains may also appear.
Surface quality B: improved surface
With this surface quality, small imperfections such as stretch levelling breaks, skin pass marks, slight scratches, indentations, surface structure, zinc run-off marks and light passivation stains are permissible.
Surface quality C: best quality surface
Surface condition C is obtained by skin passing. The controlled surface for the exposed side enables application of a uniform paint finish. The reverse surface has, at least, the characteristics of surface quality B.
Surface finish
Pure zinc
MA: minimised spangle, as coated surface (Z/GI).
MB: minimised spangle, improved surface (Z/GI).
MC: minimised spangle, best quality surface (Z/GI).
MagiZinc®
A : as coated surface (ZM).
B : improved surface (ZM).
C: best quality surface (ZM).
Surface roughness
Metallic coated steel (with the exception of galvanised steel with standard surface (MA) can be supplied in various grades of roughness – please contact us for more details. If no roughness is specified, roughness will be as shown in the table below.
Roughness Ra (µm) |
|
|---|---|
cut off 0.8mm | cut off 2.5mm |
| 0.6 - 1.9 | 0.7 - 2.2 |
Surface treatments
The surface treatments available are O, C and CO.
Oiling (O)
The material surface can be oiled with preservative oil. Other types of oil - for increasing strength or reducing weight – are available to help achieve your optimum performance parameters. Please contact us for details.
Tata Steel offers the following range of oiling levels:
| Coating type | Capability |
|---|---|
| Pure zinc (Z/GI) | 0.5 - 1.6 g/m2 |
| MagiZinc® (ZM) | 0.5 - 1.6 g/m2 |
Other oiling levels are available on request.
Chromium-free passivation (C)
This surface treatment temporarily protects the zinc-coated material against white rust during transportation and storage (not applicable to all qualities and dimensions – please contact us for details).
Chromium-free passivation and oiled (CO)
Please request this combination of surface treatments if you require extra protection against white rust formation (not applicable to all qualities and dimensions – please contact us for details).
T-treatment
Please contact us for further information.
Prime Lubrication Treatment (PLT)
Prime Lubrication Treatment facilitates the manufacturing of stamped components by minimising known issues in stamping and joining.
Currently Under development, please contact us regarding further information
Untreated (U)
Please contact us regarding the availability of untreated coils.
EN-Product-Metallic coated-Forming-DX51D-PropertiesTSUK
Properties
Mechanical properties
Metallic coated steel for forming has the following mechanical properties. These are measured transverse to the rolling direction:
| EN 10346: 2015 | Grade | DX51D+Z/+ZM |
|---|---|---|
| Yield strength 1 Re | N/mm² | - |
| Tensile strength Rm | N/mm² | 270 - 500 |
| Elongation 2 | % | 22 |
| Min. r-value | - | |
| Min. n-value | - |
1. If the yield point is not pronounced, the values apply to the 0.2% - proof strength Rp0.2 ; if the yield strength is pronounced, the values apply to the lower yield point ReL.
2. Decreased minimum elongation values apply for product thickness t ≤ 0.50mm (minus 4 units) and for 0.50mm ≤ t ≤ 0.70mm (minus 2 units).
Elongation after fracture A uses test piece length L0 = 80 mm.
Chemical composition
Tata Steel complies with the following cast analysis:
| EN 10346: 2015 | Grade | DX51D+Z/+ZM |
|---|---|---|
| C | Max. | 0.18 |
| Mn | Max. | 1.20 |
| P | Max. | 0.12 |
| S | Max. | 0.045 |
| Si | Max. | 0.50 |
| Al | Min. | - |
| N | Max. | - |
| Ti | Max. | 0.30 |
All values are in weight%.
EN-Product-Metallic coated-Forming-DX51D-Dimensions TSUK
Dimensional capability
Galvanised (Z/GI) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX51D |
| 0.36 - 0.40 | 1324 |
| 0.40 - 0.55 | 1375 |
| 0.55 - 0.66 | 1525 |
| 0.66 - 0.80 | 1600 |
| 0.70 - 0.75 | 1600 |
| 0.75 - 0.80 | 1600 |
| 0.80 - 1.60 | 1750 |
| 1.60 - 1.70 | 1650 |
| 1.70 - 1.80 | 1560 |
| 1.80 - 1.95 | 1525 |
| 1.95 - 2.00 | 1500 |
For widths below 900 mm, please contact us.
For products produced in the Netherlands click here
Galvannealed (ZF/GA) products
Produced in the Netherlands. For further information click here.
MagiZinc® (ZM) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX51D |
| 0.60 - 0.66 | 1525 |
| 0.66 - 0.70 | 1600 |
| 0.70 - 0.80 | 1600 |
| 0.80 - 1.60 | 1750 |
| 1.60 - 1.70 | 1650 |
| 1.70 - 1.80 | 1560 |
| 1.80 - 1.95 | 1525 |
| 1.95 - 2.00 | 1500 |
For widths below 900 mm, please contact us.
For products produced in the Netherlands click here
Tolerances
Tolerances comply with standard EN 10143 2006.
Tighter tolerances are available, please contact us for details.
EN-Product-Metallic Coated-All Grades Shape and Dimensional TolerancesTSUK
Tolerances on thickness
The tolerances comply with standard EN 10143: 2006.
Tighter tolerances are available on request.
Thickness tolerance availability is shown below:
Thickness tolerance | Availability |
|---|---|
| Full thickness tolerance | Available |
| Special thickness tolerance | Available |
| 50% of full thickness tolerance | Refer before ordering |
The following tolerances apply to the grades with a minimum value for the yield strength lower than 260N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| > 0.40 | ≤ 0.60 | ± 0.04 | ± 0.05 | ± 0.06 | ± 0.035 | ± 0.040 | ± 0.045 |
| > 0.60 | ≤ 0.80 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.80 | ≤ 1.00 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 1.00 | ≤ 1.20 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.20 | ≤ 1.60 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.60 | ≤ 2.00 | ± 0.12 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 2.00 | ≤ 2.50 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.090 | ± 0.100 | ± 0.110 |
| > 2.50 | ≤ 3.00 | ± 0.17 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 3.00 | ≤ 5.00 | ± 0.20 | ± 0.20 | ± 0.21 | ± 0.15 | ± 0.16 | ± 0.17 |
| > 5.00 | ≤ 6.50 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.17 | ± 0.18 | ± 0.19 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 260N/mm² ≤ Rp0.2 < 360N/mm² and for grades DX51D and S550GD.
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.035 | ± 0.040 | - |
| > 0.40 | ≤ 0.60 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.60 | ≤ 0.80 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.80 | ≤ 1.00 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.00 | ≤ 1.20 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.20 | ≤ 1.60 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.60 | ≤ 2.00 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 2.00 | ≤ 2.50 | ± 0.16 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 2.50 | ≤ 3.00 | ± 0.19 | ± 0.20 | ± 0.20 | ± 0.130 | ± 0.140 | ± 0.150 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm
The following tolerances apply to the steel grades with a minimum value for the yield strength 360N/mm² ≤ Rp0.2 ≤ 420N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.040 | ± 0.045 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.80 | ≤ 1.00 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.00 | ≤ 1.20 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.20 | ≤ 1.60 | ± 0.13 | ± 0.14 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.60 | ≤ 2.00 | ± 0.16 | ± 0.17 | ± 0.19 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 2.00 | ≤ 2.50 | ± 0.18 | ± 0.20 | ± 0.21 | ± 0.120 | ± 0.130 | ± 0.140 |
| > 2.50 | ≤ 3.00 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.140 | ± 0.150 | ± 0.160 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 420N/mm² < Rp0.2 ≤ 900N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.06 | ± 0.07 | - | ± 0.045 | ± 0.050 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 0.80 | ≤ 1.00 | ± 0.09 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.00 | ≤ 1.20 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.20 | ≤ 1.60 | ± 0.15 | ± 0.16 | ± 0.18 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 1.60 | ≤ 2.00 | ± 0.18 | ± 0.19 | ± 0.21 | ± 0.110 | ± 0.120 | ± 0.140 |
| > 2.00 | ≤ 2.50 | ± 0.21 | ± 0.22 | ± 0.24 | ± 0.140 | ± 0.150 | ± 0.170 |
| > 2.50 | ≤ 3.00 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.170 | ± 0.180 | ± 0.190 |
| > 3.00 | ≤ 5.00 | ± 0.26 | ± 0.27 | ± 0.28 | ± 0.23 | ± 0.24 | ± 0.26 |
| > 5.00 | ≤ 6.50 | ± 0.28 | ± 0.29 | ± 0.30 | ± 0.25 | ± 0.26 | ± 0.28 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
Tolerances on width
The tolerances on width comply with standard EN 10143: 2006
MagiZinc is not included in the standard, but fulfils EN 10143: 2006 requirements.
Tighter tolerances are available on request.
Tolerances in mm.
| Nominal width w | Normal tolerances | Special tolerances (S) |
|---|---|---|
| 600 ≤ w ≤ 1200 | + 5 0 | + 2 0 |
| 1200 < w ≤ 1500 | + 6 0 | + 2 0 |
| 1500 < w ≤ 1800 | + 7 0 | + 3 0 |
| w > 1800 | + 8 0 | + 3 0 |

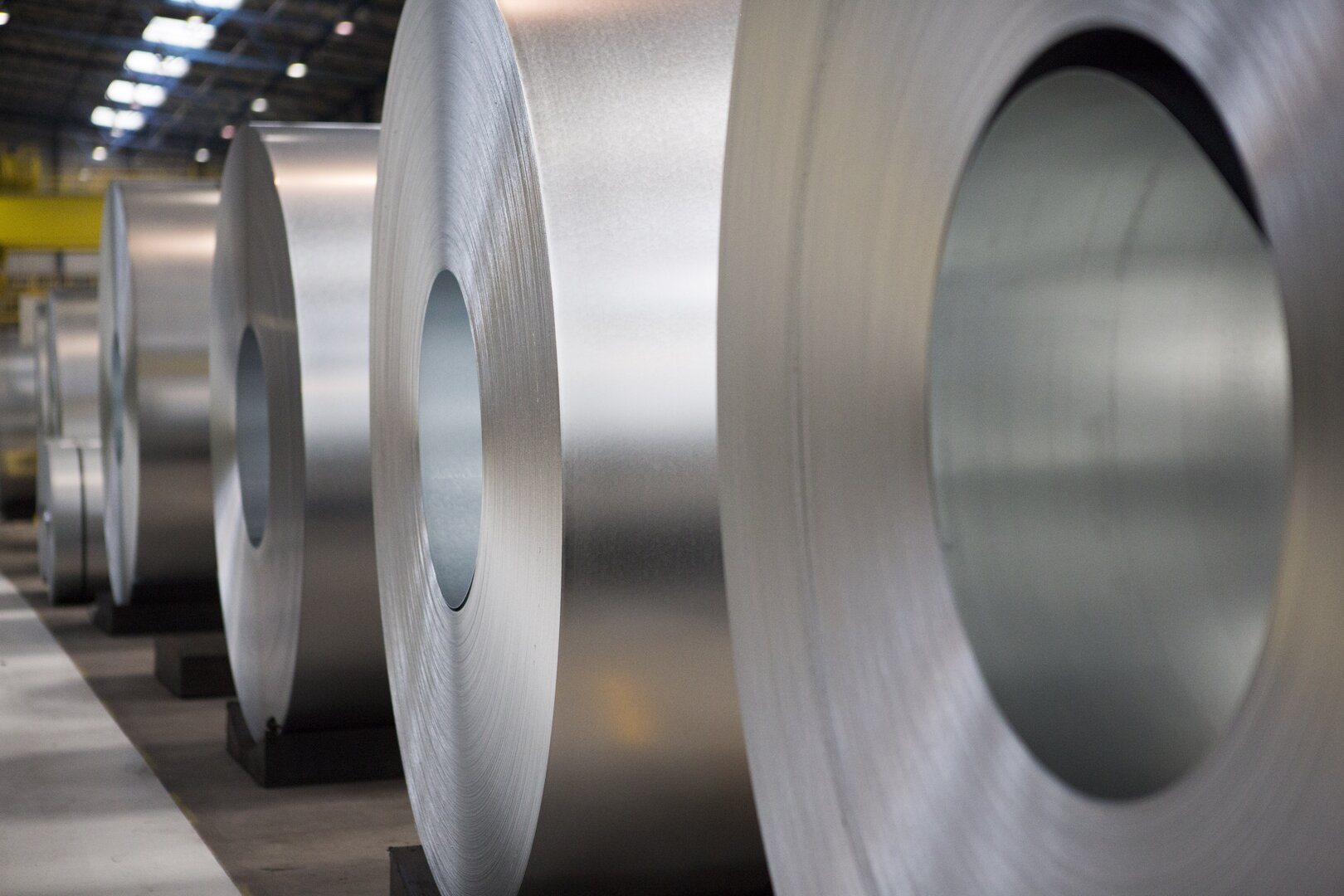

Dimensions and coil weights
| Description | Availability |
|---|---|
| Coil diameter inner | 610mm |
| (508 mm available on request) | |
| Coil diameter outer | 10/7 x width max |
| 1000mm min. | |
| 2500mm max. | |
| Coil weight | 30t max. |
| Coil weight limited by maximum outer diameter | |
| Maximum weight allowed by road/rail transport | |
| Some products may have different coil weight ranges available | |
| Usually a minimum coil weight up to 85% of the maximum coil weight can be requested | |
| Minimum tonnage per order | Refer to price list for order quantity details |
| Minimum order quantities may apply |
EN-Product-Metallic coated-All grades Further processingTSUK
Further processing
We have a broad network of Tata Steel service centres across Europe, offering decoiling and slitting services from stock and against short lead times
Light gauge processing
| Processing type | Slitting | Decoiling | Blanking |
|---|---|---|---|
| Thickness range (mm) | 0.2 - 7.0 | 0.3 - 6.0 | 0.3 - 6.0 |
| Width range (mm) | 10 - 2050 | 50 - 2600 | 200 - 2600 |
| Length range | - | up to 6m | up to 6m |
| Locations | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Netherlands |
For further information please visit our service centre webpages.
EN-Product-Metallic coated-Forming-DownloadsTSUK
Download:
EN-Engineering-Brochure-MagiZinc
MagiZinc - Brochure
EN-Automotive-Brochure-MagiZinc-Auto
MagiZinc - Brochure
EN-Automotive-CaseStudy-TCO scan MagiZinc
TCO scan MagiZinc - Case study
EN-Product-Metallic coated-Forming-DX52D+Z/+ZM TSUK
EN-Product-Metallic coated-Forming-All Grades OverviewTSUK
Overview
With MagiZinc® you can manufacture lighter products with higher strength thanks to the improved corrosion protection and at the same time increase the production volume and further reduce costs thanks to the better processing properties.
Relationship with standards
Metallic coated steel for forming complies with the following European standard
| European standard | VDA standard |
|---|---|
| EN 10346: 2015 | VDA 239-100-16 |
| DX51D+Z/+ZF/+ZM | - |
| DX52D+Z/+ZF/+ZM | CR1-GI/GA/ZM |
| DX53D+Z/+ZF/+ZM | CR2-GI/GA/ZM |
| DX54D+Z/+ZF/+ZM | CR3-GI/GA/ZM |
| DX56D+Z/+ZF/+ZM | CR4-GI/GA/ZM |
| DX57D+Z/+ZM | CR5-GI/ZM |
| DX58D+Z 1 | - |
Galvannealed (ZF/GA) coatings and DX58D+Z are produced in the Netherlands. For further information click here.
1. Not in standard. Tata Steel’s own specification.
EN-Product-Metallic coated-All Grades Coatings Surface aspectsTSUK
Coatings
Three types of metallic coating are available:
Pure zinc
Galvanised steel (Z/GI) is coated with an almost pure zinc coating (>99% zinc).
Zinc-iron alloy
Produced in the Netherlands. For further information click here.
MagiZinc
MagiZinc steel (ZM) is coated with a zinc coating containing additional magnesium and aluminium.
Coating weight
| Coating | Minimum | Maximum |
|---|---|---|
| Pure zinc (Z/GI) | 90 (6 µm/side) | 275 (20 µm/side) |
| MagiZinc (ZM)1 | 70 (5 µm/side) | 310 (22 µm/side) |
Coating weight measured in g/m2 double-sided (µm, per side).
Surface quality
Surface quality complies with standard: EN 10346:2015. Galvanised steels are available in surface quality A, B or C.
Also, Serica FLO® surface quality produced in the Netherlands. For further information click here.
Surface quality A: as coated surface
Imperfections such as pimples, marks, scratches, pits, variations in surface appearance, dark spots, stripe marks and light passivation stains are permissible.
Stretch levelling breaks or run-off marks may appear. Coil breaks and stretcher strains may also appear.
Surface quality B: improved surface
With this surface quality, small imperfections such as stretch levelling breaks, skin pass marks, slight scratches, indentations, surface structure, zinc run-off marks and light passivation stains are permissible.
Surface quality C: best quality surface
Surface condition C is obtained by skin passing. The controlled surface for the exposed side enables application of a uniform paint finish. The reverse surface has, at least, the characteristics of surface quality B.
Surface finish
Pure zinc
MA: minimised spangle, as coated surface (Z/GI).
MB: minimised spangle, improved surface (Z/GI).
MC: minimised spangle, best quality surface (Z/GI).
MagiZinc®
A : as coated surface (ZM).
B : improved surface (ZM).
C: best quality surface (ZM).
Surface roughness
Metallic coated steel (with the exception of galvanised steel with standard surface (MA) can be supplied in various grades of roughness – please contact us for more details. If no roughness is specified, roughness will be as shown in the table below.
Roughness Ra (µm) |
|
|---|---|
cut off 0.8mm | cut off 2.5mm |
| 0.6 - 1.9 | 0.7 - 2.2 |
Surface treatments
The surface treatments available are O, C and CO.
Oiling (O)
The material surface can be oiled with preservative oil. Other types of oil - for increasing strength or reducing weight – are available to help achieve your optimum performance parameters. Please contact us for details.
Tata Steel offers the following range of oiling levels:
| Coating type | Capability |
|---|---|
| Pure zinc (Z/GI) | 0.5 - 1.6 g/m2 |
| MagiZinc® (ZM) | 0.5 - 1.6 g/m2 |
Other oiling levels are available on request.
Chromium-free passivation (C)
This surface treatment temporarily protects the zinc-coated material against white rust during transportation and storage (not applicable to all qualities and dimensions – please contact us for details).
Chromium-free passivation and oiled (CO)
Please request this combination of surface treatments if you require extra protection against white rust formation (not applicable to all qualities and dimensions – please contact us for details).
T-treatment
Please contact us for further information.
Prime Lubrication Treatment (PLT)
Prime Lubrication Treatment facilitates the manufacturing of stamped components by minimising known issues in stamping and joining.
Currently Under development, please contact us regarding further information
Untreated (U)
Please contact us regarding the availability of untreated coils.
EN-Product-Metallic coated-Forming-DX52D-PropertiesTSUK
Properties
Mechanical properties
Metallic coated steel for forming has the following mechanical properties. These are measured transverse to the rolling direction:
| EN 10346: 2015 | Grade | DX52D+Z/+ZM |
|---|---|---|
| Yield strength 1 Re | N/mm² | 140 - 300 3 |
| Tensile strength Rm | N/mm² | 270 - 420 |
| Elongation 2 | % | 26 |
| Min. r-value | - | |
| Min. n-value | - |
1. If the yield point is not pronounced, the values apply to the 0.2% - proof strength Rp0.2 ; if the yield strength is pronounced, the values apply to the lower yield point ReL.
2. Decreased minimum elongation values apply for product thickness t ≤ 0.50 mm (minus 4 units) and for 0.50 mm ≤ t ≤ 0.70 mm (minus 2 units).
Elongation after fracture A uses test piece length L0 = 80 mm.
3. This value applies to skin-passed products only (surface qualities B and C).
Chemical composition
Tata Steel complies with the following cast analysis:
| EN 10346: 2015 | Grade | DX52D+Z/+ZM |
|---|---|---|
| C | Max. | 0.12 |
| Mn | Max. | 0.60 |
| P | Max. | 0.10 |
| S | Max. | 0.045 |
| Si | Max. | 0.50 |
| Al | Min. | - |
| N | Max. | - |
| Ti | Max. | 0.30 |
All values are in weight%.
EN-Product-Metallic coated-Forming-DX52D-Dimensions TSUK
Dimensional capability
Galvanised (Z/GI) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX52D |
| 0.40 - 0.55 | 1375 |
| 0.55 - 0.60 | 1525 |
| 0.60 - 0.65 | 1575 |
| 0.65 - 0.66 | 1640 |
| 0.66 - 1.25 | 1650 |
| 1.25 - 1.65 | 1640 |
| 1.65 - 2.00 | 1380 |
For widths below 900 mm, please contact us.
For products produced in the Netherlands click here.
Galvannealed (ZF) products
Produced in the Netherlands. For further information click here.
MagiZinc® (ZM) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX52D |
| 0.60 - 0.65 | 1575 |
| 0.65 - 0.66 | 1640 |
| 0.66 - 1.25 | 1650 |
| 1.25 - 1.65 | 1640 |
| 1.65 - 1.80 | 1380 |
| 1.80 - 2.00 | 1380 |
For widths below 900 mm, please contact us.
For thicknesses between 2.00 and 2.50 mm, please contact us.
For products produced in the Netherlands click here.
Tolerances
Tolerances comply with standard EN 10143 2006.
Tighter tolerances are available, please contact us for details.
EN-Product-Metallic Coated-All Grades Shape and Dimensional TolerancesTSUK
Tolerances on thickness
The tolerances comply with standard EN 10143: 2006.
Tighter tolerances are available on request.
Thickness tolerance availability is shown below:
Thickness tolerance | Availability |
|---|---|
| Full thickness tolerance | Available |
| Special thickness tolerance | Available |
| 50% of full thickness tolerance | Refer before ordering |
The following tolerances apply to the grades with a minimum value for the yield strength lower than 260N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| > 0.40 | ≤ 0.60 | ± 0.04 | ± 0.05 | ± 0.06 | ± 0.035 | ± 0.040 | ± 0.045 |
| > 0.60 | ≤ 0.80 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.80 | ≤ 1.00 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 1.00 | ≤ 1.20 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.20 | ≤ 1.60 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.60 | ≤ 2.00 | ± 0.12 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 2.00 | ≤ 2.50 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.090 | ± 0.100 | ± 0.110 |
| > 2.50 | ≤ 3.00 | ± 0.17 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 3.00 | ≤ 5.00 | ± 0.20 | ± 0.20 | ± 0.21 | ± 0.15 | ± 0.16 | ± 0.17 |
| > 5.00 | ≤ 6.50 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.17 | ± 0.18 | ± 0.19 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 260N/mm² ≤ Rp0.2 < 360N/mm² and for grades DX51D and S550GD.
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.035 | ± 0.040 | - |
| > 0.40 | ≤ 0.60 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.60 | ≤ 0.80 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.80 | ≤ 1.00 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.00 | ≤ 1.20 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.20 | ≤ 1.60 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.60 | ≤ 2.00 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 2.00 | ≤ 2.50 | ± 0.16 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 2.50 | ≤ 3.00 | ± 0.19 | ± 0.20 | ± 0.20 | ± 0.130 | ± 0.140 | ± 0.150 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm
The following tolerances apply to the steel grades with a minimum value for the yield strength 360N/mm² ≤ Rp0.2 ≤ 420N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.040 | ± 0.045 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.80 | ≤ 1.00 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.00 | ≤ 1.20 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.20 | ≤ 1.60 | ± 0.13 | ± 0.14 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.60 | ≤ 2.00 | ± 0.16 | ± 0.17 | ± 0.19 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 2.00 | ≤ 2.50 | ± 0.18 | ± 0.20 | ± 0.21 | ± 0.120 | ± 0.130 | ± 0.140 |
| > 2.50 | ≤ 3.00 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.140 | ± 0.150 | ± 0.160 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 420N/mm² < Rp0.2 ≤ 900N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.06 | ± 0.07 | - | ± 0.045 | ± 0.050 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 0.80 | ≤ 1.00 | ± 0.09 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.00 | ≤ 1.20 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.20 | ≤ 1.60 | ± 0.15 | ± 0.16 | ± 0.18 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 1.60 | ≤ 2.00 | ± 0.18 | ± 0.19 | ± 0.21 | ± 0.110 | ± 0.120 | ± 0.140 |
| > 2.00 | ≤ 2.50 | ± 0.21 | ± 0.22 | ± 0.24 | ± 0.140 | ± 0.150 | ± 0.170 |
| > 2.50 | ≤ 3.00 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.170 | ± 0.180 | ± 0.190 |
| > 3.00 | ≤ 5.00 | ± 0.26 | ± 0.27 | ± 0.28 | ± 0.23 | ± 0.24 | ± 0.26 |
| > 5.00 | ≤ 6.50 | ± 0.28 | ± 0.29 | ± 0.30 | ± 0.25 | ± 0.26 | ± 0.28 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
Tolerances on width
The tolerances on width comply with standard EN 10143: 2006
MagiZinc is not included in the standard, but fulfils EN 10143: 2006 requirements.
Tighter tolerances are available on request.
Tolerances in mm.
| Nominal width w | Normal tolerances | Special tolerances (S) |
|---|---|---|
| 600 ≤ w ≤ 1200 | + 5 0 | + 2 0 |
| 1200 < w ≤ 1500 | + 6 0 | + 2 0 |
| 1500 < w ≤ 1800 | + 7 0 | + 3 0 |
| w > 1800 | + 8 0 | + 3 0 |
Dimensions and coil weights
| Description | Availability |
|---|---|
| Coil diameter inner | 610mm |
| (508 mm available on request) | |
| Coil diameter outer | 10/7 x width max |
| 1000mm min. | |
| 2500mm max. | |
| Coil weight | 30t max. |
| Coil weight limited by maximum outer diameter | |
| Maximum weight allowed by road/rail transport | |
| Some products may have different coil weight ranges available | |
| Usually a minimum coil weight up to 85% of the maximum coil weight can be requested | |
| Minimum tonnage per order | Refer to price list for order quantity details |
| Minimum order quantities may apply |
EN-Product-Metallic coated-All grades Further processingTSUK
Further processing
We have a broad network of Tata Steel service centres across Europe, offering decoiling and slitting services from stock and against short lead times
Light gauge processing
| Processing type | Slitting | Decoiling | Blanking |
|---|---|---|---|
| Thickness range (mm) | 0.2 - 7.0 | 0.3 - 6.0 | 0.3 - 6.0 |
| Width range (mm) | 10 - 2050 | 50 - 2600 | 200 - 2600 |
| Length range | - | up to 6m | up to 6m |
| Locations | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Netherlands |
For further information please visit our service centre webpages.
EN-Product-Metallic coated-Forming-DownloadsTSUK
Download:
EN-Engineering-Brochure-MagiZinc
MagiZinc - Brochure
EN-Automotive-Brochure-MagiZinc-Auto
MagiZinc - Brochure
EN-Automotive-CaseStudy-TCO scan MagiZinc
TCO scan MagiZinc - Case study
EN-Product-Metallic coated-Forming-DX53D+Z/+ZM TSUK
EN-Product-Metallic coated-Forming-All Grades OverviewTSUK
Overview
With MagiZinc® you can manufacture lighter products with higher strength thanks to the improved corrosion protection and at the same time increase the production volume and further reduce costs thanks to the better processing properties.
Relationship with standards
Metallic coated steel for forming complies with the following European standard
| European standard | VDA standard |
|---|---|
| EN 10346: 2015 | VDA 239-100-16 |
| DX51D+Z/+ZF/+ZM | - |
| DX52D+Z/+ZF/+ZM | CR1-GI/GA/ZM |
| DX53D+Z/+ZF/+ZM | CR2-GI/GA/ZM |
| DX54D+Z/+ZF/+ZM | CR3-GI/GA/ZM |
| DX56D+Z/+ZF/+ZM | CR4-GI/GA/ZM |
| DX57D+Z/+ZM | CR5-GI/ZM |
| DX58D+Z 1 | - |
Galvannealed (ZF/GA) coatings and DX58D+Z are produced in the Netherlands. For further information click here.
1. Not in standard. Tata Steel’s own specification.
EN-Product-Metallic coated-All Grades Coatings Surface aspectsTSUK
Coatings
Three types of metallic coating are available:
Pure zinc
Galvanised steel (Z/GI) is coated with an almost pure zinc coating (>99% zinc).
Zinc-iron alloy
Produced in the Netherlands. For further information click here.
MagiZinc
MagiZinc steel (ZM) is coated with a zinc coating containing additional magnesium and aluminium.
Coating weight
| Coating | Minimum | Maximum |
|---|---|---|
| Pure zinc (Z/GI) | 90 (6 µm/side) | 275 (20 µm/side) |
| MagiZinc (ZM)1 | 70 (5 µm/side) | 310 (22 µm/side) |
Coating weight measured in g/m2 double-sided (µm, per side).
Surface quality
Surface quality complies with standard: EN 10346:2015. Galvanised steels are available in surface quality A, B or C.
Also, Serica FLO® surface quality produced in the Netherlands. For further information click here.
Surface quality A: as coated surface
Imperfections such as pimples, marks, scratches, pits, variations in surface appearance, dark spots, stripe marks and light passivation stains are permissible.
Stretch levelling breaks or run-off marks may appear. Coil breaks and stretcher strains may also appear.
Surface quality B: improved surface
With this surface quality, small imperfections such as stretch levelling breaks, skin pass marks, slight scratches, indentations, surface structure, zinc run-off marks and light passivation stains are permissible.
Surface quality C: best quality surface
Surface condition C is obtained by skin passing. The controlled surface for the exposed side enables application of a uniform paint finish. The reverse surface has, at least, the characteristics of surface quality B.
Surface finish
Pure zinc
MA: minimised spangle, as coated surface (Z/GI).
MB: minimised spangle, improved surface (Z/GI).
MC: minimised spangle, best quality surface (Z/GI).
MagiZinc®
A : as coated surface (ZM).
B : improved surface (ZM).
C: best quality surface (ZM).
Surface roughness
Metallic coated steel (with the exception of galvanised steel with standard surface (MA) can be supplied in various grades of roughness – please contact us for more details. If no roughness is specified, roughness will be as shown in the table below.
Roughness Ra (µm) |
|
|---|---|
cut off 0.8mm | cut off 2.5mm |
| 0.6 - 1.9 | 0.7 - 2.2 |
Surface treatments
The surface treatments available are O, C and CO.
Oiling (O)
The material surface can be oiled with preservative oil. Other types of oil - for increasing strength or reducing weight – are available to help achieve your optimum performance parameters. Please contact us for details.
Tata Steel offers the following range of oiling levels:
| Coating type | Capability |
|---|---|
| Pure zinc (Z/GI) | 0.5 - 1.6 g/m2 |
| MagiZinc® (ZM) | 0.5 - 1.6 g/m2 |
Other oiling levels are available on request.
Chromium-free passivation (C)
This surface treatment temporarily protects the zinc-coated material against white rust during transportation and storage (not applicable to all qualities and dimensions – please contact us for details).
Chromium-free passivation and oiled (CO)
Please request this combination of surface treatments if you require extra protection against white rust formation (not applicable to all qualities and dimensions – please contact us for details).
T-treatment
Please contact us for further information.
Prime Lubrication Treatment (PLT)
Prime Lubrication Treatment facilitates the manufacturing of stamped components by minimising known issues in stamping and joining.
Currently Under development, please contact us regarding further information
Untreated (U)
Please contact us regarding the availability of untreated coils.
EN-Product-Metallic coated-Forming-DX53D-PropertiesTSUK
Properties
Mechanical properties
Metallic coated steel for forming has the following mechanical properties. These are measured transverse to the rolling direction:
| EN 10346: 2015 | Grade | DX53D+Z/+ZM |
|---|---|---|
| Yield strength 1 Re | N/mm² | 140 - 260 |
| Tensile strength Rm | N/mm² | 270 - 380 |
| Elongation 2 | % | 30 |
| Min. r-value | - | |
| Min. n-value | - |
1. If the yield point is not pronounced, the values apply to the 0.2% - proof strength Rp0.2 ; if the yield strength is pronounced, the values apply to the lower yield point ReL.
2. Decreased minimum elongation values apply for product thickness t ≤ 0.50mm (minus 4 units) and for 0.50mm ≤ t ≤ 0.70mm (minus 2 units).
Elongation after fracture A uses test piece length L0 = 80 mm.
Chemical composition
Tata Steel complies with the following cast analysis:
| EN 10346: 2015 | Grade | DX53D+Z/+ZM |
|---|---|---|
| C | Max. | 0.12 |
| Mn | Max. | 0.60 |
| P | Max. | 0.10 |
| S | Max. | 0.045 |
| Si | Max. | 0.50 |
| Al | Min. | - |
| N | Max. | - |
| Ti | Max. | 0.30 |
All values are in weight%.
EN-Product-Metallic coated-Forming-DX53D-Dimensions TSUK
Dimensional capability
Galvanised (Z/GI) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX53D |
| 0.50 - 0.55 | 1251 |
| 0.55 - 0.57 | 1291 |
| 0.57 - 0.60 | 1525 |
| 0.60 - 0.65 | 1570 |
| 0.65 - 0.66 | 1664 |
| 0.66 - 0.70 | 1664 |
| 0.70 - 1.65 | 1700 |
| 1.65 - 1.80 | 1570 |
| 1.80 - 2.00 | 1414 |
For widths below 900 mm, please contact us.
For products produced in the Netherlands click here.
Galvannealed (ZF/GA) products
Produced in the Netherlands. For further information click here.
MagiZinc® (ZM) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX53D |
| 0.60 - 0.65 | 1570 |
| 0.65 - 0.70 | 1664 |
| 0.70 - 1.65 | 1700 |
| 1.65 - 1.80 | 1570 |
| 1.80 - 2.00 | 1414 |
For widths below 900 mm, please contact us.
For products produced in the Netherlands click here.
Tolerances
Tolerances comply with standard EN 10143 2006.
Tighter tolerances are available, please contact us for details.
EN-Product-Metallic Coated-All Grades Shape and Dimensional TolerancesTSUK
Tolerances on thickness
The tolerances comply with standard EN 10143: 2006.
Tighter tolerances are available on request.
Thickness tolerance availability is shown below:
Thickness tolerance | Availability |
|---|---|
| Full thickness tolerance | Available |
| Special thickness tolerance | Available |
| 50% of full thickness tolerance | Refer before ordering |
The following tolerances apply to the grades with a minimum value for the yield strength lower than 260N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| > 0.40 | ≤ 0.60 | ± 0.04 | ± 0.05 | ± 0.06 | ± 0.035 | ± 0.040 | ± 0.045 |
| > 0.60 | ≤ 0.80 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.80 | ≤ 1.00 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 1.00 | ≤ 1.20 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.20 | ≤ 1.60 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.60 | ≤ 2.00 | ± 0.12 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 2.00 | ≤ 2.50 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.090 | ± 0.100 | ± 0.110 |
| > 2.50 | ≤ 3.00 | ± 0.17 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 3.00 | ≤ 5.00 | ± 0.20 | ± 0.20 | ± 0.21 | ± 0.15 | ± 0.16 | ± 0.17 |
| > 5.00 | ≤ 6.50 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.17 | ± 0.18 | ± 0.19 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 260N/mm² ≤ Rp0.2 < 360N/mm² and for grades DX51D and S550GD.
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.035 | ± 0.040 | - |
| > 0.40 | ≤ 0.60 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.60 | ≤ 0.80 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.80 | ≤ 1.00 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.00 | ≤ 1.20 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.20 | ≤ 1.60 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.60 | ≤ 2.00 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 2.00 | ≤ 2.50 | ± 0.16 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 2.50 | ≤ 3.00 | ± 0.19 | ± 0.20 | ± 0.20 | ± 0.130 | ± 0.140 | ± 0.150 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm
The following tolerances apply to the steel grades with a minimum value for the yield strength 360N/mm² ≤ Rp0.2 ≤ 420N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.040 | ± 0.045 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.80 | ≤ 1.00 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.00 | ≤ 1.20 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.20 | ≤ 1.60 | ± 0.13 | ± 0.14 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.60 | ≤ 2.00 | ± 0.16 | ± 0.17 | ± 0.19 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 2.00 | ≤ 2.50 | ± 0.18 | ± 0.20 | ± 0.21 | ± 0.120 | ± 0.130 | ± 0.140 |
| > 2.50 | ≤ 3.00 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.140 | ± 0.150 | ± 0.160 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 420N/mm² < Rp0.2 ≤ 900N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.06 | ± 0.07 | - | ± 0.045 | ± 0.050 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 0.80 | ≤ 1.00 | ± 0.09 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.00 | ≤ 1.20 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.20 | ≤ 1.60 | ± 0.15 | ± 0.16 | ± 0.18 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 1.60 | ≤ 2.00 | ± 0.18 | ± 0.19 | ± 0.21 | ± 0.110 | ± 0.120 | ± 0.140 |
| > 2.00 | ≤ 2.50 | ± 0.21 | ± 0.22 | ± 0.24 | ± 0.140 | ± 0.150 | ± 0.170 |
| > 2.50 | ≤ 3.00 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.170 | ± 0.180 | ± 0.190 |
| > 3.00 | ≤ 5.00 | ± 0.26 | ± 0.27 | ± 0.28 | ± 0.23 | ± 0.24 | ± 0.26 |
| > 5.00 | ≤ 6.50 | ± 0.28 | ± 0.29 | ± 0.30 | ± 0.25 | ± 0.26 | ± 0.28 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
Tolerances on width
The tolerances on width comply with standard EN 10143: 2006
MagiZinc is not included in the standard, but fulfils EN 10143: 2006 requirements.
Tighter tolerances are available on request.
Tolerances in mm.
| Nominal width w | Normal tolerances | Special tolerances (S) |
|---|---|---|
| 600 ≤ w ≤ 1200 | + 5 0 | + 2 0 |
| 1200 < w ≤ 1500 | + 6 0 | + 2 0 |
| 1500 < w ≤ 1800 | + 7 0 | + 3 0 |
| w > 1800 | + 8 0 | + 3 0 |
Dimensions and coil weights
| Description | Availability |
|---|---|
| Coil diameter inner | 610mm |
| (508 mm available on request) | |
| Coil diameter outer | 10/7 x width max |
| 1000mm min. | |
| 2500mm max. | |
| Coil weight | 30t max. |
| Coil weight limited by maximum outer diameter | |
| Maximum weight allowed by road/rail transport | |
| Some products may have different coil weight ranges available | |
| Usually a minimum coil weight up to 85% of the maximum coil weight can be requested | |
| Minimum tonnage per order | Refer to price list for order quantity details |
| Minimum order quantities may apply |
EN-Product-Metallic coated-All grades Further processingTSUK
Further processing
We have a broad network of Tata Steel service centres across Europe, offering decoiling and slitting services from stock and against short lead times
Light gauge processing
| Processing type | Slitting | Decoiling | Blanking |
|---|---|---|---|
| Thickness range (mm) | 0.2 - 7.0 | 0.3 - 6.0 | 0.3 - 6.0 |
| Width range (mm) | 10 - 2050 | 50 - 2600 | 200 - 2600 |
| Length range | - | up to 6m | up to 6m |
| Locations | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Netherlands |
For further information please visit our service centre webpages.
EN-Product-Metallic coated-Forming-DownloadsTSUK
Download:
EN-Engineering-Brochure-MagiZinc
MagiZinc - Brochure
EN-Automotive-Brochure-MagiZinc-Auto
MagiZinc - Brochure
EN-Automotive-CaseStudy-TCO scan MagiZinc
TCO scan MagiZinc - Case study
EN-Product-Metallic coated-Forming-DX54D+Z/+ZM TSUK
EN-Product-Metallic coated-Forming-All Grades OverviewTSUK
Overview
With MagiZinc® you can manufacture lighter products with higher strength thanks to the improved corrosion protection and at the same time increase the production volume and further reduce costs thanks to the better processing properties.
Relationship with standards
Metallic coated steel for forming complies with the following European standard
| European standard | VDA standard |
|---|---|
| EN 10346: 2015 | VDA 239-100-16 |
| DX51D+Z/+ZF/+ZM | - |
| DX52D+Z/+ZF/+ZM | CR1-GI/GA/ZM |
| DX53D+Z/+ZF/+ZM | CR2-GI/GA/ZM |
| DX54D+Z/+ZF/+ZM | CR3-GI/GA/ZM |
| DX56D+Z/+ZF/+ZM | CR4-GI/GA/ZM |
| DX57D+Z/+ZM | CR5-GI/ZM |
| DX58D+Z 1 | - |
Galvannealed (ZF/GA) coatings and DX58D+Z are produced in the Netherlands. For further information click here.
1. Not in standard. Tata Steel’s own specification.
EN-Product-Metallic coated-All Grades Coatings Surface aspectsTSUK
Coatings
Three types of metallic coating are available:
Pure zinc
Galvanised steel (Z/GI) is coated with an almost pure zinc coating (>99% zinc).
Zinc-iron alloy
Produced in the Netherlands. For further information click here.
MagiZinc
MagiZinc steel (ZM) is coated with a zinc coating containing additional magnesium and aluminium.
Coating weight
| Coating | Minimum | Maximum |
|---|---|---|
| Pure zinc (Z/GI) | 90 (6 µm/side) | 275 (20 µm/side) |
| MagiZinc (ZM)1 | 70 (5 µm/side) | 310 (22 µm/side) |
Coating weight measured in g/m2 double-sided (µm, per side).
Surface quality
Surface quality complies with standard: EN 10346:2015. Galvanised steels are available in surface quality A, B or C.
Also, Serica FLO® surface quality produced in the Netherlands. For further information click here.
Surface quality A: as coated surface
Imperfections such as pimples, marks, scratches, pits, variations in surface appearance, dark spots, stripe marks and light passivation stains are permissible.
Stretch levelling breaks or run-off marks may appear. Coil breaks and stretcher strains may also appear.
Surface quality B: improved surface
With this surface quality, small imperfections such as stretch levelling breaks, skin pass marks, slight scratches, indentations, surface structure, zinc run-off marks and light passivation stains are permissible.
Surface quality C: best quality surface
Surface condition C is obtained by skin passing. The controlled surface for the exposed side enables application of a uniform paint finish. The reverse surface has, at least, the characteristics of surface quality B.
Surface finish
Pure zinc
MA: minimised spangle, as coated surface (Z/GI).
MB: minimised spangle, improved surface (Z/GI).
MC: minimised spangle, best quality surface (Z/GI).
MagiZinc®
A : as coated surface (ZM).
B : improved surface (ZM).
C: best quality surface (ZM).
Surface roughness
Metallic coated steel (with the exception of galvanised steel with standard surface (MA) can be supplied in various grades of roughness – please contact us for more details. If no roughness is specified, roughness will be as shown in the table below.
Roughness Ra (µm) |
|
|---|---|
cut off 0.8mm | cut off 2.5mm |
| 0.6 - 1.9 | 0.7 - 2.2 |
Surface treatments
The surface treatments available are O, C and CO.
Oiling (O)
The material surface can be oiled with preservative oil. Other types of oil - for increasing strength or reducing weight – are available to help achieve your optimum performance parameters. Please contact us for details.
Tata Steel offers the following range of oiling levels:
| Coating type | Capability |
|---|---|
| Pure zinc (Z/GI) | 0.5 - 1.6 g/m2 |
| MagiZinc® (ZM) | 0.5 - 1.6 g/m2 |
Other oiling levels are available on request.
Chromium-free passivation (C)
This surface treatment temporarily protects the zinc-coated material against white rust during transportation and storage (not applicable to all qualities and dimensions – please contact us for details).
Chromium-free passivation and oiled (CO)
Please request this combination of surface treatments if you require extra protection against white rust formation (not applicable to all qualities and dimensions – please contact us for details).
T-treatment
Please contact us for further information.
Prime Lubrication Treatment (PLT)
Prime Lubrication Treatment facilitates the manufacturing of stamped components by minimising known issues in stamping and joining.
Currently Under development, please contact us regarding further information
Untreated (U)
Please contact us regarding the availability of untreated coils.
EN-Product-Metallic coated-Forming-DX54D-PropertiesTSUK
Properties
Mechanical properties
Metallic coated steel for forming has the following mechanical properties. These are measured transverse to the rolling direction:
| EN 10346: 2015 | Grade | DX54D+Z | DX54D+ZM |
|---|---|---|---|
| Yield strength 1 Re | N/mm² | 120 - 220 | 120 - 220 |
| Tensile strength Rm | N/mm² | 260 - 350 | 260 - 350 |
| Elongation 2 | % | 36 | 34 |
| Min. r-value 3 | 1.6 | 1.4 | |
| Min. n-value | 0.18 | 0.18 |
1. If the yield point is not pronounced, the values apply to the 0.2% - proof strength Rp0.2 ; if the yield strength is pronounced, the values apply to the lower yield point ReL.2. Decreased minimum elongation values apply for product thickness t ≤ 0.50 mm (minus 4 units) and for 0.50 mm ≤ t ≤ 0.70 mm (minus 2 units).
Elongation after fracture A uses test piece length L0 = 80 mm.
3. For t > 1.5 mm, the minimum r90 - value reduced by 0.2 applies.
Chemical composition
Tata Steel complies with the following cast analysis:
| EN 10346: 2015 | Grade | DX54D+Z/+ZM |
|---|---|---|
| C | Max. | 0.12 |
| Mn | Max. | 0.60 |
| P | Max. | 0.10 |
| S | Max. | 0.045 |
| Si | Max. | 0.50 |
| Al | Min. | - |
| N | Max. | - |
| Ti | Max. | 0.30 |
All values are in weight%.
EN-Product-Metallic coated-Forming-DX54D-Dimensions TSUK
Dimensional capability
Galvanised (Z/GI) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX54D |
| 0.50 - 0.55 | 1250 |
| 0.55 - 0.57 | 1291 |
| 0.57 - 0.60 | 1525 |
| 0.60 - 0.65 | 1580 |
| 0.65 - 0.70 | 1756 |
| 0.70 - 1.60 | 1800 |
| 1.60 - 1.80 | 1756 |
| 1.80 - 2.00 | 1525 |
For widths below 900 mm, please contact us.
For products produced in the Netherlands click here.
Galvannealed (ZF/GA) products
Produced in the Netherlands. For further information click here.
MagiZinc® (ZM) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX54D |
| 0.60 - 0.65 | 1580 |
| 0.65 - 0.70 | 1756 |
| 0.70 - 1.60 | 1800 |
| 1.60 - 1.80 | 1756 |
| 1.80 - 2.00 | 1525 |
For widths below 900 mm, please contact us.
For products produced in the Netherlands click here.
Tolerances
Tolerances comply with standard EN 10143 2006.
Tighter tolerances are available, please contact us for details.
EN-Product-Metallic Coated-All Grades Shape and Dimensional TolerancesTSUK
Tolerances on thickness
The tolerances comply with standard EN 10143: 2006.
Tighter tolerances are available on request.
Thickness tolerance availability is shown below:
Thickness tolerance | Availability |
|---|---|
| Full thickness tolerance | Available |
| Special thickness tolerance | Available |
| 50% of full thickness tolerance | Refer before ordering |
The following tolerances apply to the grades with a minimum value for the yield strength lower than 260N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| > 0.40 | ≤ 0.60 | ± 0.04 | ± 0.05 | ± 0.06 | ± 0.035 | ± 0.040 | ± 0.045 |
| > 0.60 | ≤ 0.80 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.80 | ≤ 1.00 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 1.00 | ≤ 1.20 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.20 | ≤ 1.60 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.60 | ≤ 2.00 | ± 0.12 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 2.00 | ≤ 2.50 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.090 | ± 0.100 | ± 0.110 |
| > 2.50 | ≤ 3.00 | ± 0.17 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 3.00 | ≤ 5.00 | ± 0.20 | ± 0.20 | ± 0.21 | ± 0.15 | ± 0.16 | ± 0.17 |
| > 5.00 | ≤ 6.50 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.17 | ± 0.18 | ± 0.19 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 260N/mm² ≤ Rp0.2 < 360N/mm² and for grades DX51D and S550GD.
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.035 | ± 0.040 | - |
| > 0.40 | ≤ 0.60 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.60 | ≤ 0.80 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.80 | ≤ 1.00 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.00 | ≤ 1.20 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.20 | ≤ 1.60 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.60 | ≤ 2.00 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 2.00 | ≤ 2.50 | ± 0.16 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 2.50 | ≤ 3.00 | ± 0.19 | ± 0.20 | ± 0.20 | ± 0.130 | ± 0.140 | ± 0.150 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm
The following tolerances apply to the steel grades with a minimum value for the yield strength 360N/mm² ≤ Rp0.2 ≤ 420N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.040 | ± 0.045 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.80 | ≤ 1.00 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.00 | ≤ 1.20 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.20 | ≤ 1.60 | ± 0.13 | ± 0.14 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.60 | ≤ 2.00 | ± 0.16 | ± 0.17 | ± 0.19 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 2.00 | ≤ 2.50 | ± 0.18 | ± 0.20 | ± 0.21 | ± 0.120 | ± 0.130 | ± 0.140 |
| > 2.50 | ≤ 3.00 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.140 | ± 0.150 | ± 0.160 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 420N/mm² < Rp0.2 ≤ 900N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.06 | ± 0.07 | - | ± 0.045 | ± 0.050 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 0.80 | ≤ 1.00 | ± 0.09 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.00 | ≤ 1.20 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.20 | ≤ 1.60 | ± 0.15 | ± 0.16 | ± 0.18 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 1.60 | ≤ 2.00 | ± 0.18 | ± 0.19 | ± 0.21 | ± 0.110 | ± 0.120 | ± 0.140 |
| > 2.00 | ≤ 2.50 | ± 0.21 | ± 0.22 | ± 0.24 | ± 0.140 | ± 0.150 | ± 0.170 |
| > 2.50 | ≤ 3.00 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.170 | ± 0.180 | ± 0.190 |
| > 3.00 | ≤ 5.00 | ± 0.26 | ± 0.27 | ± 0.28 | ± 0.23 | ± 0.24 | ± 0.26 |
| > 5.00 | ≤ 6.50 | ± 0.28 | ± 0.29 | ± 0.30 | ± 0.25 | ± 0.26 | ± 0.28 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
Tolerances on width
The tolerances on width comply with standard EN 10143: 2006
MagiZinc is not included in the standard, but fulfils EN 10143: 2006 requirements.
Tighter tolerances are available on request.
Tolerances in mm.
| Nominal width w | Normal tolerances | Special tolerances (S) |
|---|---|---|
| 600 ≤ w ≤ 1200 | + 5 0 | + 2 0 |
| 1200 < w ≤ 1500 | + 6 0 | + 2 0 |
| 1500 < w ≤ 1800 | + 7 0 | + 3 0 |
| w > 1800 | + 8 0 | + 3 0 |
Dimensions and coil weights
| Description | Availability |
|---|---|
| Coil diameter inner | 610mm |
| (508 mm available on request) | |
| Coil diameter outer | 10/7 x width max |
| 1000mm min. | |
| 2500mm max. | |
| Coil weight | 30t max. |
| Coil weight limited by maximum outer diameter | |
| Maximum weight allowed by road/rail transport | |
| Some products may have different coil weight ranges available | |
| Usually a minimum coil weight up to 85% of the maximum coil weight can be requested | |
| Minimum tonnage per order | Refer to price list for order quantity details |
| Minimum order quantities may apply |
EN-Product-Metallic coated-All grades Further processingTSUK
Further processing
We have a broad network of Tata Steel service centres across Europe, offering decoiling and slitting services from stock and against short lead times
Light gauge processing
| Processing type | Slitting | Decoiling | Blanking |
|---|---|---|---|
| Thickness range (mm) | 0.2 - 7.0 | 0.3 - 6.0 | 0.3 - 6.0 |
| Width range (mm) | 10 - 2050 | 50 - 2600 | 200 - 2600 |
| Length range | - | up to 6m | up to 6m |
| Locations | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Netherlands |
For further information please visit our service centre webpages.
EN-Product-Metallic coated-Forming-DownloadsTSUK
Download:
EN-Engineering-Brochure-MagiZinc
MagiZinc - Brochure
EN-Automotive-Brochure-MagiZinc-Auto
MagiZinc - Brochure
EN-Automotive-CaseStudy-TCO scan MagiZinc
TCO scan MagiZinc - Case study
EN-Product-Metallic coated-Forming-DX56D+Z/+ZM TSUK
EN-Product-Metallic coated-Forming-All Grades OverviewTSUK
Overview
With MagiZinc® you can manufacture lighter products with higher strength thanks to the improved corrosion protection and at the same time increase the production volume and further reduce costs thanks to the better processing properties.
Relationship with standards
Metallic coated steel for forming complies with the following European standard
| European standard | VDA standard |
|---|---|
| EN 10346: 2015 | VDA 239-100-16 |
| DX51D+Z/+ZF/+ZM | - |
| DX52D+Z/+ZF/+ZM | CR1-GI/GA/ZM |
| DX53D+Z/+ZF/+ZM | CR2-GI/GA/ZM |
| DX54D+Z/+ZF/+ZM | CR3-GI/GA/ZM |
| DX56D+Z/+ZF/+ZM | CR4-GI/GA/ZM |
| DX57D+Z/+ZM | CR5-GI/ZM |
| DX58D+Z 1 | - |
Galvannealed (ZF/GA) coatings and DX58D+Z are produced in the Netherlands. For further information click here.
1. Not in standard. Tata Steel’s own specification.
EN-Product-Metallic coated-All Grades Coatings Surface aspectsTSUK
Coatings
Three types of metallic coating are available:
Pure zinc
Galvanised steel (Z/GI) is coated with an almost pure zinc coating (>99% zinc).
Zinc-iron alloy
Produced in the Netherlands. For further information click here.
MagiZinc
MagiZinc steel (ZM) is coated with a zinc coating containing additional magnesium and aluminium.
Coating weight
| Coating | Minimum | Maximum |
|---|---|---|
| Pure zinc (Z/GI) | 90 (6 µm/side) | 275 (20 µm/side) |
| MagiZinc (ZM)1 | 70 (5 µm/side) | 310 (22 µm/side) |
Coating weight measured in g/m2 double-sided (µm, per side).
Surface quality
Surface quality complies with standard: EN 10346:2015. Galvanised steels are available in surface quality A, B or C.
Also, Serica FLO® surface quality produced in the Netherlands. For further information click here.
Surface quality A: as coated surface
Imperfections such as pimples, marks, scratches, pits, variations in surface appearance, dark spots, stripe marks and light passivation stains are permissible.
Stretch levelling breaks or run-off marks may appear. Coil breaks and stretcher strains may also appear.
Surface quality B: improved surface
With this surface quality, small imperfections such as stretch levelling breaks, skin pass marks, slight scratches, indentations, surface structure, zinc run-off marks and light passivation stains are permissible.
Surface quality C: best quality surface
Surface condition C is obtained by skin passing. The controlled surface for the exposed side enables application of a uniform paint finish. The reverse surface has, at least, the characteristics of surface quality B.
Surface finish
Pure zinc
MA: minimised spangle, as coated surface (Z/GI).
MB: minimised spangle, improved surface (Z/GI).
MC: minimised spangle, best quality surface (Z/GI).
MagiZinc®
A : as coated surface (ZM).
B : improved surface (ZM).
C: best quality surface (ZM).
Surface roughness
Metallic coated steel (with the exception of galvanised steel with standard surface (MA) can be supplied in various grades of roughness – please contact us for more details. If no roughness is specified, roughness will be as shown in the table below.
Roughness Ra (µm) |
|
|---|---|
cut off 0.8mm | cut off 2.5mm |
| 0.6 - 1.9 | 0.7 - 2.2 |
Surface treatments
The surface treatments available are O, C and CO.
Oiling (O)
The material surface can be oiled with preservative oil. Other types of oil - for increasing strength or reducing weight – are available to help achieve your optimum performance parameters. Please contact us for details.
Tata Steel offers the following range of oiling levels:
| Coating type | Capability |
|---|---|
| Pure zinc (Z/GI) | 0.5 - 1.6 g/m2 |
| MagiZinc® (ZM) | 0.5 - 1.6 g/m2 |
Other oiling levels are available on request.
Chromium-free passivation (C)
This surface treatment temporarily protects the zinc-coated material against white rust during transportation and storage (not applicable to all qualities and dimensions – please contact us for details).
Chromium-free passivation and oiled (CO)
Please request this combination of surface treatments if you require extra protection against white rust formation (not applicable to all qualities and dimensions – please contact us for details).
T-treatment
Please contact us for further information.
Prime Lubrication Treatment (PLT)
Prime Lubrication Treatment facilitates the manufacturing of stamped components by minimising known issues in stamping and joining.
Currently Under development, please contact us regarding further information
Untreated (U)
Please contact us regarding the availability of untreated coils.
EN-Product-Metallic coated-Forming-DX56D-PropertiesTSUK
Properties
Mechanical properties
Metallic coated steel for forming has the following mechanical properties. These are measured transverse to the rolling direction:
| EN 10346: 2015 | Grade | DX56D+Z | DX56D+ZM |
|---|---|---|---|
| Yield strength 1 Re | N/mm² | 120 - 180 | 120 - 180 |
| Tensile strength Rm | N/mm² | 260 - 350 | 260 - 350 |
| Elongation 2 | % | 39 | 37 |
| Min. r-value 3 | 1.9 | 1.7 4 | |
| Min. n-value | 0.21 | 0.20 4 |
1. If the yield point is not pronounced, the values apply to the 0.2% - proof strength Rp0.2 ; if the yield strength is pronounced, the values apply to the lower yield point ReL.
2. Decreased minimum elongation values apply for product thickness t ≤ 0.50 mm (minus 4 units) and for 0.50 mm ≤ t ≤ 0.70 mm (minus 2 units).
Elongation after fraction A uses test piece length L0 = 80 mm.
3. For t > 1.5 mm, the minimum r90 - value reduced by 0.2 applies.
4. For t ≤ 0.70 mm, the minimum r90 - value reduced by 0.2 and minimum n90- value reduced by 0.01 apply.
Chemical composition
Tata Steel complies with the following cast analysis:
| EN 10346: 2015 | Grade | DX56D+Z/+ZM |
|---|---|---|
| C | Max. | 0.12 |
| Mn | Max. | 0.60 |
| P | Max. | 0.10 |
| S | Max. | 0.045 |
| Si | Max. | 0.50 |
| Al | Min. | - |
| N | Max. | - |
| Ti | Max. | 0.30 |
All values are in weight%.
EN-Product-Metallic coated-Forming-DX56D-Dimensions TSUK
Dimensional capability
Galvanised (Z/GI) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX56D |
| 0.60 - 0.65 | 1580 |
| 0.65 - 0.70 | 1756 |
| 0.70 - 1.60 | 1800 |
| 1.60 - 1.80 | 1756 |
| 1.80 - 2.00 | 1525 |
For widths below 900 mm, please contact us.
For products produced in the Netherlands click here.
Galvannealed (ZF/GA) products
Produced in the Netherlands. For further information click here.
MagiZinc® (ZM) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX56D |
| 0.60 - 0.65 | 1580 |
| 0.65 - 0.70 | 1756 |
| 0.70 - 1.60 | 1800 |
| 1.60 - 1.80 | 1756 |
| 1.80 - 2.00 | 1525 |
For widths below 900 mm, please contact us.
For products produced in the Netherlands click here.
Tolerances
Tolerances comply with standard EN 10143 2006.
Tighter tolerances are available, please contact us for details.
EN-Product-Metallic Coated-All Grades Shape and Dimensional TolerancesTSUK
Tolerances on thickness
The tolerances comply with standard EN 10143: 2006.
Tighter tolerances are available on request.
Thickness tolerance availability is shown below:
Thickness tolerance | Availability |
|---|---|
| Full thickness tolerance | Available |
| Special thickness tolerance | Available |
| 50% of full thickness tolerance | Refer before ordering |
The following tolerances apply to the grades with a minimum value for the yield strength lower than 260N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| > 0.40 | ≤ 0.60 | ± 0.04 | ± 0.05 | ± 0.06 | ± 0.035 | ± 0.040 | ± 0.045 |
| > 0.60 | ≤ 0.80 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.80 | ≤ 1.00 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 1.00 | ≤ 1.20 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.20 | ≤ 1.60 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.60 | ≤ 2.00 | ± 0.12 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 2.00 | ≤ 2.50 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.090 | ± 0.100 | ± 0.110 |
| > 2.50 | ≤ 3.00 | ± 0.17 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 3.00 | ≤ 5.00 | ± 0.20 | ± 0.20 | ± 0.21 | ± 0.15 | ± 0.16 | ± 0.17 |
| > 5.00 | ≤ 6.50 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.17 | ± 0.18 | ± 0.19 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 260N/mm² ≤ Rp0.2 < 360N/mm² and for grades DX51D and S550GD.
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.035 | ± 0.040 | - |
| > 0.40 | ≤ 0.60 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.60 | ≤ 0.80 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.80 | ≤ 1.00 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.00 | ≤ 1.20 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.20 | ≤ 1.60 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.60 | ≤ 2.00 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 2.00 | ≤ 2.50 | ± 0.16 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 2.50 | ≤ 3.00 | ± 0.19 | ± 0.20 | ± 0.20 | ± 0.130 | ± 0.140 | ± 0.150 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm
The following tolerances apply to the steel grades with a minimum value for the yield strength 360N/mm² ≤ Rp0.2 ≤ 420N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.040 | ± 0.045 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.80 | ≤ 1.00 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.00 | ≤ 1.20 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.20 | ≤ 1.60 | ± 0.13 | ± 0.14 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.60 | ≤ 2.00 | ± 0.16 | ± 0.17 | ± 0.19 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 2.00 | ≤ 2.50 | ± 0.18 | ± 0.20 | ± 0.21 | ± 0.120 | ± 0.130 | ± 0.140 |
| > 2.50 | ≤ 3.00 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.140 | ± 0.150 | ± 0.160 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 420N/mm² < Rp0.2 ≤ 900N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.06 | ± 0.07 | - | ± 0.045 | ± 0.050 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 0.80 | ≤ 1.00 | ± 0.09 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.00 | ≤ 1.20 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.20 | ≤ 1.60 | ± 0.15 | ± 0.16 | ± 0.18 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 1.60 | ≤ 2.00 | ± 0.18 | ± 0.19 | ± 0.21 | ± 0.110 | ± 0.120 | ± 0.140 |
| > 2.00 | ≤ 2.50 | ± 0.21 | ± 0.22 | ± 0.24 | ± 0.140 | ± 0.150 | ± 0.170 |
| > 2.50 | ≤ 3.00 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.170 | ± 0.180 | ± 0.190 |
| > 3.00 | ≤ 5.00 | ± 0.26 | ± 0.27 | ± 0.28 | ± 0.23 | ± 0.24 | ± 0.26 |
| > 5.00 | ≤ 6.50 | ± 0.28 | ± 0.29 | ± 0.30 | ± 0.25 | ± 0.26 | ± 0.28 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
Tolerances on width
The tolerances on width comply with standard EN 10143: 2006
MagiZinc is not included in the standard, but fulfils EN 10143: 2006 requirements.
Tighter tolerances are available on request.
Tolerances in mm.
| Nominal width w | Normal tolerances | Special tolerances (S) |
|---|---|---|
| 600 ≤ w ≤ 1200 | + 5 0 | + 2 0 |
| 1200 < w ≤ 1500 | + 6 0 | + 2 0 |
| 1500 < w ≤ 1800 | + 7 0 | + 3 0 |
| w > 1800 | + 8 0 | + 3 0 |
Dimensions and coil weights
| Description | Availability |
|---|---|
| Coil diameter inner | 610mm |
| (508 mm available on request) | |
| Coil diameter outer | 10/7 x width max |
| 1000mm min. | |
| 2500mm max. | |
| Coil weight | 30t max. |
| Coil weight limited by maximum outer diameter | |
| Maximum weight allowed by road/rail transport | |
| Some products may have different coil weight ranges available | |
| Usually a minimum coil weight up to 85% of the maximum coil weight can be requested | |
| Minimum tonnage per order | Refer to price list for order quantity details |
| Minimum order quantities may apply |
EN-Product-Metallic coated-All grades Further processingTSUK
Further processing
We have a broad network of Tata Steel service centres across Europe, offering decoiling and slitting services from stock and against short lead times
Light gauge processing
| Processing type | Slitting | Decoiling | Blanking |
|---|---|---|---|
| Thickness range (mm) | 0.2 - 7.0 | 0.3 - 6.0 | 0.3 - 6.0 |
| Width range (mm) | 10 - 2050 | 50 - 2600 | 200 - 2600 |
| Length range | - | up to 6m | up to 6m |
| Locations | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Netherlands |
For further information please visit our service centre webpages.
EN-Product-Metallic coated-Forming-DownloadsTSUK
Download:
EN-Engineering-Brochure-MagiZinc
MagiZinc - Brochure
EN-Automotive-Brochure-MagiZinc-Auto
MagiZinc - Brochure
EN-Automotive-CaseStudy-TCO scan MagiZinc
TCO scan MagiZinc - Case study
EN-Product-Metallic coated-Forming-DX57D+Z/+ZM TSUK
EN-Product-Metallic coated-Forming-All Grades OverviewTSUK
Overview
With MagiZinc® you can manufacture lighter products with higher strength thanks to the improved corrosion protection and at the same time increase the production volume and further reduce costs thanks to the better processing properties.
Relationship with standards
Metallic coated steel for forming complies with the following European standard
| European standard | VDA standard |
|---|---|
| EN 10346: 2015 | VDA 239-100-16 |
| DX51D+Z/+ZF/+ZM | - |
| DX52D+Z/+ZF/+ZM | CR1-GI/GA/ZM |
| DX53D+Z/+ZF/+ZM | CR2-GI/GA/ZM |
| DX54D+Z/+ZF/+ZM | CR3-GI/GA/ZM |
| DX56D+Z/+ZF/+ZM | CR4-GI/GA/ZM |
| DX57D+Z/+ZM | CR5-GI/ZM |
| DX58D+Z 1 | - |
Galvannealed (ZF/GA) coatings and DX58D+Z are produced in the Netherlands. For further information click here.
1. Not in standard. Tata Steel’s own specification.
EN-Product-Metallic coated-All Grades Coatings Surface aspectsTSUK
Coatings
Three types of metallic coating are available:
Pure zinc
Galvanised steel (Z/GI) is coated with an almost pure zinc coating (>99% zinc).
Zinc-iron alloy
Produced in the Netherlands. For further information click here.
MagiZinc
MagiZinc steel (ZM) is coated with a zinc coating containing additional magnesium and aluminium.
Coating weight
| Coating | Minimum | Maximum |
|---|---|---|
| Pure zinc (Z/GI) | 90 (6 µm/side) | 275 (20 µm/side) |
| MagiZinc (ZM)1 | 70 (5 µm/side) | 310 (22 µm/side) |
Coating weight measured in g/m2 double-sided (µm, per side).
Surface quality
Surface quality complies with standard: EN 10346:2015. Galvanised steels are available in surface quality A, B or C.
Also, Serica FLO® surface quality produced in the Netherlands. For further information click here.
Surface quality A: as coated surface
Imperfections such as pimples, marks, scratches, pits, variations in surface appearance, dark spots, stripe marks and light passivation stains are permissible.
Stretch levelling breaks or run-off marks may appear. Coil breaks and stretcher strains may also appear.
Surface quality B: improved surface
With this surface quality, small imperfections such as stretch levelling breaks, skin pass marks, slight scratches, indentations, surface structure, zinc run-off marks and light passivation stains are permissible.
Surface quality C: best quality surface
Surface condition C is obtained by skin passing. The controlled surface for the exposed side enables application of a uniform paint finish. The reverse surface has, at least, the characteristics of surface quality B.
Surface finish
Pure zinc
MA: minimised spangle, as coated surface (Z/GI).
MB: minimised spangle, improved surface (Z/GI).
MC: minimised spangle, best quality surface (Z/GI).
MagiZinc®
A : as coated surface (ZM).
B : improved surface (ZM).
C: best quality surface (ZM).
Surface roughness
Metallic coated steel (with the exception of galvanised steel with standard surface (MA) can be supplied in various grades of roughness – please contact us for more details. If no roughness is specified, roughness will be as shown in the table below.
Roughness Ra (µm) |
|
|---|---|
cut off 0.8mm | cut off 2.5mm |
| 0.6 - 1.9 | 0.7 - 2.2 |
Surface treatments
The surface treatments available are O, C and CO.
Oiling (O)
The material surface can be oiled with preservative oil. Other types of oil - for increasing strength or reducing weight – are available to help achieve your optimum performance parameters. Please contact us for details.
Tata Steel offers the following range of oiling levels:
| Coating type | Capability |
|---|---|
| Pure zinc (Z/GI) | 0.5 - 1.6 g/m2 |
| MagiZinc® (ZM) | 0.5 - 1.6 g/m2 |
Other oiling levels are available on request.
Chromium-free passivation (C)
This surface treatment temporarily protects the zinc-coated material against white rust during transportation and storage (not applicable to all qualities and dimensions – please contact us for details).
Chromium-free passivation and oiled (CO)
Please request this combination of surface treatments if you require extra protection against white rust formation (not applicable to all qualities and dimensions – please contact us for details).
T-treatment
Please contact us for further information.
Prime Lubrication Treatment (PLT)
Prime Lubrication Treatment facilitates the manufacturing of stamped components by minimising known issues in stamping and joining.
Currently Under development, please contact us regarding further information
Untreated (U)
Please contact us regarding the availability of untreated coils.
EN-Product-Metallic coated-Forming-DX57D-PropertiesTSUK
Properties
Mechanical properties
Metallic coated steel for forming has the following mechanical properties. These are measured transverse to the rolling direction:
| EN 10346: 2015 | Grade | DX57D+Z | DX57D+ZM |
|---|---|---|---|
| Yield strength 1 Re | N/mm² | 120 - 170 | 120 - 170 |
| Tensile strength Rm | N/mm² | 260 - 350 | 260 - 350 |
| Elongation 2 | % | 41 | 39 |
| Min. r-value 3 | 2.1 | 1.9 4 | |
| Min. n-value | 0.22 | 0.21 4 |
1. If the yield point is not pronounced, the values apply to the 0.2% - proof strength Rp0.2 ; if the yield strength is pronounced, the values apply to the lower yield point ReL.
2. Decreased minimum elongation values apply for product thickness t ≤ 0.50 mm (minus 4 units) and for 0.50 mm ≤ t ≤ 0.70 mm (minus 2 units).
Elongation after fraction A uses test piece length L0 = 80 mm.
3. For t > 1.5 mm, the minimum r90 - value reduced by 0.2 applies.
4. For t ≤ 0.70 mm, the minimum r90 - value reduced by 0.2 and minimum n90- value reduced by 0.01 apply.
Chemical composition
Tata Steel complies with the following cast analysis:
| EN 10346: 2015 | Grade | DX57D+Z/+ZM |
|---|---|---|
| C | Max. | 0.12 |
| Mn | Max. | 0.60 |
| P | Max. | 0.10 |
| S | Max. | 0.045 |
| Si | Max. | 0.50 |
| Al | Min. | - |
| N | Max. | - |
| Ti | Max. | 0.30 |
All values are in weight%.
EN-Product-Metallic coated-Forming-DX57D-DimensionsTSUK
Dimensional capability
Galvanised (Z/GI) products
Dimensions in mm.
| Thickness | Max. width |
|---|---|
| From - up to | DX57D |
| 0.60 - 0.65 | 1580 |
| 0.65 - 0.70 | 1654 |
| 0.70 - 1.20 | 1800 |
| 1.20 - 1.50 | 1791 |
For widths below 900 mm, please contact us.
MagiZinc® (ZM) products
For the dimensions of DX57D+ZM, please contact us.
Tolerances
Tolerances comply with standard EN 10143 2006.
Tighter tolerances are available, please contact us for details.
EN-Product-Metallic Coated-All Grades Shape and Dimensional TolerancesTSUK
Tolerances on thickness
The tolerances comply with standard EN 10143: 2006.
Tighter tolerances are available on request.
Thickness tolerance availability is shown below:
Thickness tolerance | Availability |
|---|---|
| Full thickness tolerance | Available |
| Special thickness tolerance | Available |
| 50% of full thickness tolerance | Refer before ordering |
The following tolerances apply to the grades with a minimum value for the yield strength lower than 260N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| > 0.40 | ≤ 0.60 | ± 0.04 | ± 0.05 | ± 0.06 | ± 0.035 | ± 0.040 | ± 0.045 |
| > 0.60 | ≤ 0.80 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.80 | ≤ 1.00 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 1.00 | ≤ 1.20 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.20 | ≤ 1.60 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.60 | ≤ 2.00 | ± 0.12 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 2.00 | ≤ 2.50 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.090 | ± 0.100 | ± 0.110 |
| > 2.50 | ≤ 3.00 | ± 0.17 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 3.00 | ≤ 5.00 | ± 0.20 | ± 0.20 | ± 0.21 | ± 0.15 | ± 0.16 | ± 0.17 |
| > 5.00 | ≤ 6.50 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.17 | ± 0.18 | ± 0.19 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 260N/mm² ≤ Rp0.2 < 360N/mm² and for grades DX51D and S550GD.
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.035 | ± 0.040 | - |
| > 0.40 | ≤ 0.60 | ± 0.05 | ± 0.06 | ± 0.07 | ± 0.040 | ± 0.045 | ± 0.050 |
| > 0.60 | ≤ 0.80 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.80 | ≤ 1.00 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 1.00 | ≤ 1.20 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.20 | ≤ 1.60 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.60 | ≤ 2.00 | ± 0.14 | ± 0.15 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 2.00 | ≤ 2.50 | ± 0.16 | ± 0.17 | ± 0.18 | ± 0.110 | ± 0.120 | ± 0.130 |
| > 2.50 | ≤ 3.00 | ± 0.19 | ± 0.20 | ± 0.20 | ± 0.130 | ± 0.140 | ± 0.150 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm
The following tolerances apply to the steel grades with a minimum value for the yield strength 360N/mm² ≤ Rp0.2 ≤ 420N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.05 | ± 0.06 | - | ± 0.040 | ± 0.045 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.07 | ± 0.08 | ± 0.045 | ± 0.050 | ± 0.060 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.80 | ≤ 1.00 | ± 0.08 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 1.00 | ≤ 1.20 | ± 0.10 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.20 | ≤ 1.60 | ± 0.13 | ± 0.14 | ± 0.16 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.60 | ≤ 2.00 | ± 0.16 | ± 0.17 | ± 0.19 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 2.00 | ≤ 2.50 | ± 0.18 | ± 0.20 | ± 0.21 | ± 0.120 | ± 0.130 | ± 0.140 |
| > 2.50 | ≤ 3.00 | ± 0.22 | ± 0.22 | ± 0.23 | ± 0.140 | ± 0.150 | ± 0.160 |
| > 3.00 | ≤ 5.00 | ± 0.22 | ± 0.24 | ± 0.25 | ± 0.17 | ± 0.18 | ± 0.19 |
| > 5.00 | ≤ 6.50 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.19 | ± 0.20 | ± 0.21 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
The following tolerances apply to the steel grades with a minimum value for the yield strength 420N/mm² < Rp0.2 ≤ 900N/mm².
Nominal | Normal tolerances for a nominal width of 1 2 | Special tolerances (S) for a | |||||
|---|---|---|---|---|---|---|---|
| ≤ 1200 | > 1200 | > 1500 | ≤ 1200 | > 1200 | > 1500 | |
| ≤ 1500 |
|
| ≤ 1500 |
| ||
| ≥ 0.35 | ≤ 0.40 | ± 0.06 | ± 0.07 | - | ± 0.045 | ± 0.050 | - |
| > 0.40 | ≤ 0.60 | ± 0.06 | ± 0.08 | ± 0.09 | ± 0.050 | ± 0.060 | ± 0.070 |
| > 0.60 | ≤ 0.80 | ± 0.07 | ± 0.09 | ± 0.11 | ± 0.060 | ± 0.070 | ± 0.080 |
| > 0.80 | ≤ 1.00 | ± 0.09 | ± 0.11 | ± 0.12 | ± 0.070 | ± 0.080 | ± 0.090 |
| > 1.00 | ≤ 1.20 | ± 0.11 | ± 0.13 | ± 0.14 | ± 0.080 | ± 0.090 | ± 0.110 |
| > 1.20 | ≤ 1.60 | ± 0.15 | ± 0.16 | ± 0.18 | ± 0.090 | ± 0.110 | ± 0.120 |
| > 1.60 | ≤ 2.00 | ± 0.18 | ± 0.19 | ± 0.21 | ± 0.110 | ± 0.120 | ± 0.140 |
| > 2.00 | ≤ 2.50 | ± 0.21 | ± 0.22 | ± 0.24 | ± 0.140 | ± 0.150 | ± 0.170 |
| > 2.50 | ≤ 3.00 | ± 0.24 | ± 0.25 | ± 0.26 | ± 0.170 | ± 0.180 | ± 0.190 |
| > 3.00 | ≤ 5.00 | ± 0.26 | ± 0.27 | ± 0.28 | ± 0.23 | ± 0.24 | ± 0.26 |
| > 5.00 | ≤ 6.50 | ± 0.28 | ± 0.29 | ± 0.30 | ± 0.25 | ± 0.26 | ± 0.28 |
1. Around cold-rolled welds an increase of 20% at the most over the thickness tolerance is allowed
over a length of 15 metres.
2. For zinc coatings ≥ Z450 the tolerance on the thickness must be raised by 0.02mm.
Tolerances on width
The tolerances on width comply with standard EN 10143: 2006
MagiZinc is not included in the standard, but fulfils EN 10143: 2006 requirements.
Tighter tolerances are available on request.
Tolerances in mm.
| Nominal width w | Normal tolerances | Special tolerances (S) |
|---|---|---|
| 600 ≤ w ≤ 1200 | + 5 0 | + 2 0 |
| 1200 < w ≤ 1500 | + 6 0 | + 2 0 |
| 1500 < w ≤ 1800 | + 7 0 | + 3 0 |
| w > 1800 | + 8 0 | + 3 0 |
Dimensions and coil weights
| Description | Availability |
|---|---|
| Coil diameter inner | 610mm |
| (508 mm available on request) | |
| Coil diameter outer | 10/7 x width max |
| 1000mm min. | |
| 2500mm max. | |
| Coil weight | 30t max. |
| Coil weight limited by maximum outer diameter | |
| Maximum weight allowed by road/rail transport | |
| Some products may have different coil weight ranges available | |
| Usually a minimum coil weight up to 85% of the maximum coil weight can be requested | |
| Minimum tonnage per order | Refer to price list for order quantity details |
| Minimum order quantities may apply |
EN-Product-Metallic coated-All grades Further processingTSUK
Further processing
We have a broad network of Tata Steel service centres across Europe, offering decoiling and slitting services from stock and against short lead times
Light gauge processing
| Processing type | Slitting | Decoiling | Blanking |
|---|---|---|---|
| Thickness range (mm) | 0.2 - 7.0 | 0.3 - 6.0 | 0.3 - 6.0 |
| Width range (mm) | 10 - 2050 | 50 - 2600 | 200 - 2600 |
| Length range | - | up to 6m | up to 6m |
| Locations | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Ireland Netherlands Germany France Spain Sweden Norway Finland | UK Netherlands |
For further information please visit our service centre webpages.
EN-Product-Metallic coated-Forming-DownloadsTSUK
Download:
EN-Engineering-Brochure-MagiZinc
MagiZinc - Brochure
EN-Automotive-Brochure-MagiZinc-Auto
MagiZinc - Brochure
EN-Automotive-CaseStudy-TCO scan MagiZinc
TCO scan MagiZinc - Case study
EN-Product-Metallic Coated-HSS TSUK
High-strength steel
Our range of metallic coated high-strength steels includes micro-alloyed and bake-hardening grades.
EN-Product-Metallic Coated-AHSS TSUK
Advanced high-strength steel (AHSS)
Dual-phase steels are an AHSS steel that combine high yield strength with good ductility – ensuring excellent fatigue properties and energy absorption.
EN-Product-Metallic Coated-Structural steel TSUK
Structural steel
Tata Steel’s metallic coated structural steel behaves reliably in roll-forming and bending processes and is suitable for welding.
For exceptionally demanding applications, we have grades th
EN-Service Centres HOMEPAGE TSUK
Tata Steel’s extensive distribution network is one of the largest in the UK. These downstream facilities provide processing, service, distribution and sales support for our customers acr
EN-EngineeringAutomotive-Contact-General sales TSUK
Engineering and Automotive sales
automotiveuk@tatasteeleurope.com
Tata Steel
Llanwern Works
Newport
NP19 4QZ
United Kingdom
Join the conversation with Tata Steel UK:
LinkedIn Automotive
LinkedIn Engineering
Tata Steel UK YouTube Channel
