HarmoniPlus® - Norway
Effective, practical and highly economical
Aesthetic and highly economical HarmoniPlus® panels are designed to look like roofing tiles, which are quick and easy to mount. The roofing panels are supplied in lengths of up to 8m and in standard lengths, which fitters will find low in weight. Tata Steel have a range of flashings that will support the fitting process.
HarmoniPlus can be used for residential houses, commercial buildings, farm buildings, industrial buildings and offices. The classic design and dimensions are an effective, practical and architectural solution for a wide range of renovation and construction projects.
The roofing panels can be supplied in lengths, coatings, colours and gauge exactly to suit requirements. Attractive guarantees ensure that your building is guaranteed for up to 40 years.
EN-Construction-Product-HarmoniPlus Nordics-default
EN-Construction-Product-HarmoniPlus Nordics | Technical data

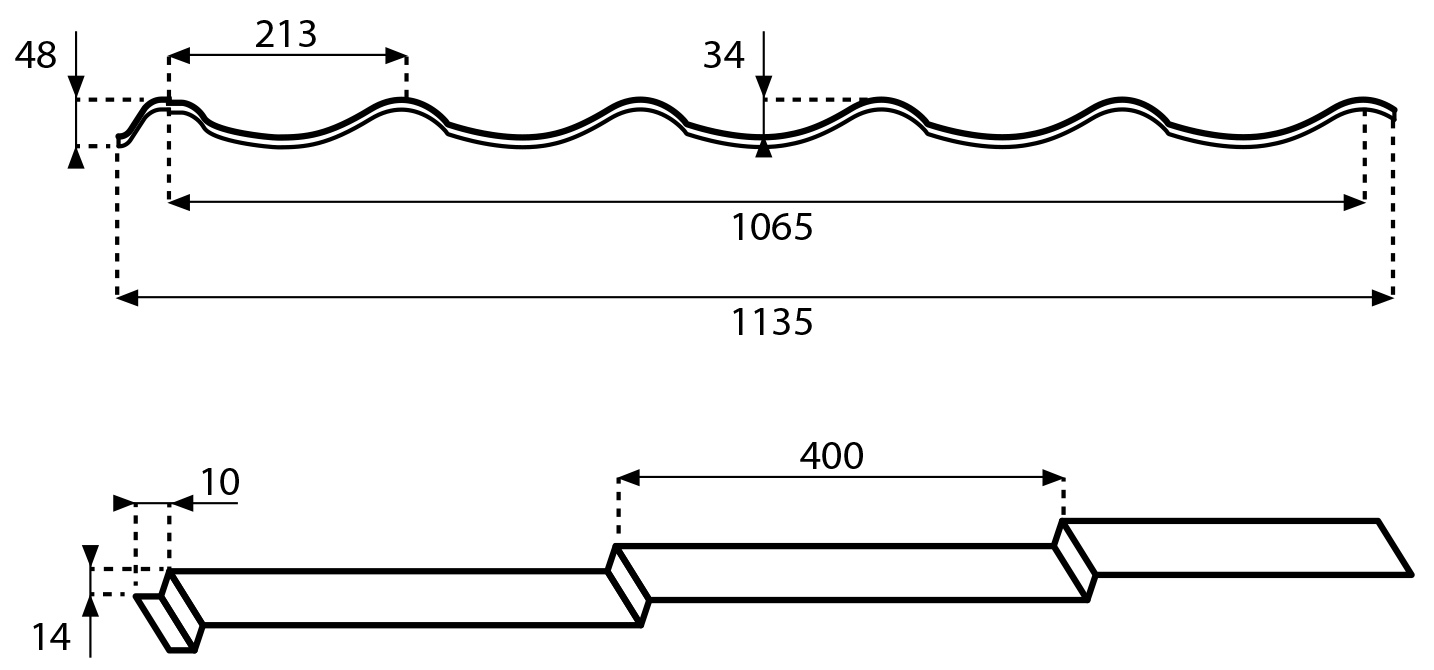

Technical data | |
---|---|
Thickness: | 0,50/0,60 mm |
Min. length: | 500 mm |
Max. length 18/45: | 5000 mm |
Module length/play distance: | CC 40 mm |
Screws required roof: | 8 stk 4,9x35 mm + 4 stk 4,8x20 mm |
Material: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
If you have any questions or for further information click here to contact us.

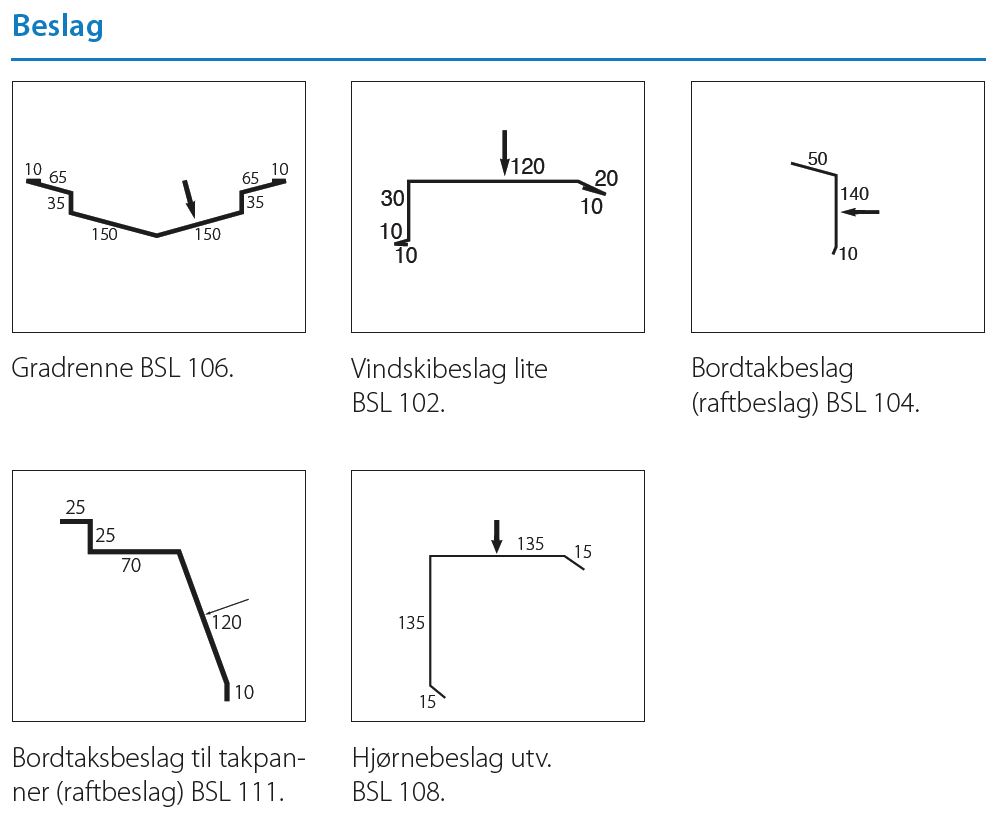

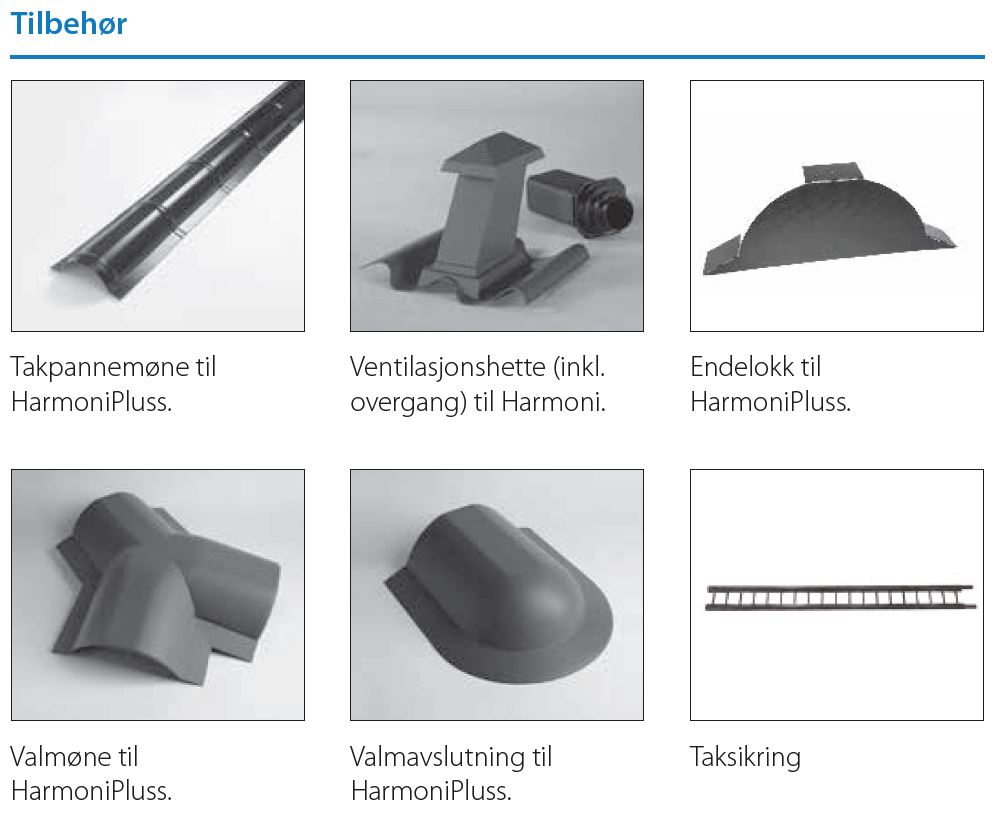

EN-Construction-Product-HarmoniPlus Nordics | Accessories and flashings
If you have any questions or for further information click here to contact us.
EN-Construction-Product-HarmoniPlus Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma® Harmoni Plus DoP
Colorcoat Prisma® Harmoni Plus DoP
EN-Construction-Approval_or_Certificate-Colorcoat HPS200 Ultra® Harmoni Plus DoP
Colorcoat HPS200 Ultra® Harmoni Plus DoP
