• Optimised Galvalloy™ metallic coating for exceptional corrosion resistance and cut edge protection.
• Meets RUV4 and surpasses RC5+ as per EN 10169:2022 proving excellent colour and gloss retention and corrosion resistance.
• Scintilla™ emboss as a mark of authenticity from Tata Steel.
• Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
• A project based warranty may be available on a case by case basis for standard cladding applications.
• Exceeds requirements of CPI5 as per EN 10169:2022 demonstrating excellent barrier properties when used internally.
• Independently tested for liberation of volatile organic compounds (VOC) against EN ISO 16000-9 and achieved an A+ rating.
• Fully REACH compliant & free of chromates including hexavalent chrome.
• BBA Certified for durability in excess of 40 years.
• Double-sided option providing a robust barrier on the reverse side of the steel substrate for buildings with demanding internal and external environments.
• Fully recyclable.
• Available with project based warranty on a case by case basis upon completion of a statement of performance application form.

If you have any questions or for further information click here to contact us.

Exceptional performance
Designed to withstand even the most demanding and aggressive environments, Colorcoat HPS200 Ultra™ pre-finished steel provides super durability and corrosion resistance. Whatever your type of building, from warehouses to houses, retail outlets to processing plants, Colorcoat HPS200 Ultra™ demonstrates proven performance and reliability.

Unrivalled corrosion protection

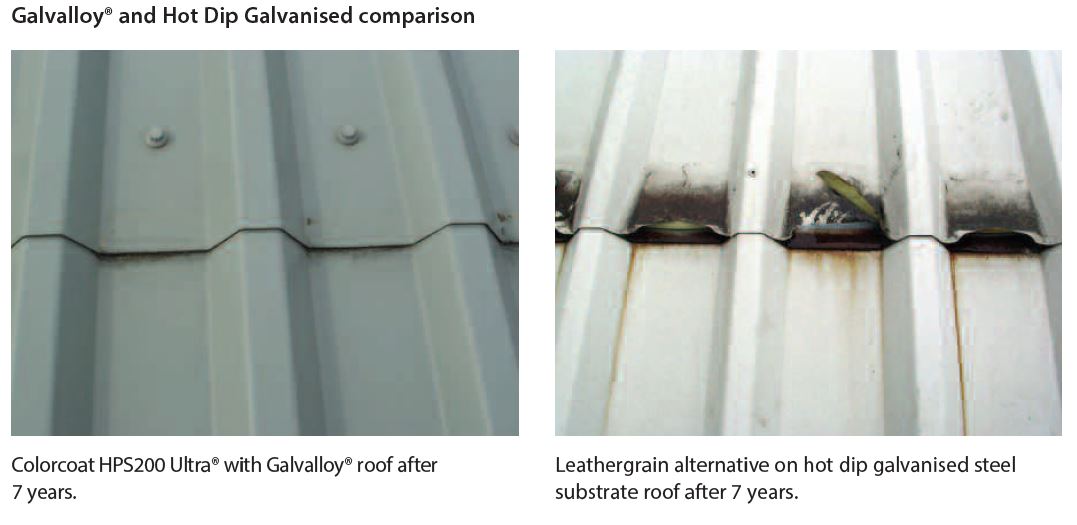

Colorcoat HPS200 Ultra™ uses the unique and proven Galvalloy™ metallic coating by Tata Steel. Galvalloy™ is made with a special mix of 95% Zinc (Zn) and 5% Aluminium (Al) that conforms to EN 10346:2015. The carefully developed proportions of Zinc and Aluminium in Galvalloy™ offers a combination of increased barrier and sacrificial protection when compared with conventional Hot Dip Galv (HDG) coatings and provides unrivalled corrosion protection, even at the cut edges.

Hand samples
Metal hand samples are available for signature colours. For a truer representation of colour and effect, please obtain metal hand samples.

Colour consistency
If tonal consistency is critical, all cladding for a single elevation should come from the same production batch. All metallic shades exhibit a degree of directionality.

Matching components
If accessories made from other materials are to be colour-matched to the roof or wall cladding, the best reference is the actual profiles or panels delivered to site, or material from the same batch.

Typical properties

*μm = micron

Notes
1. The figures contained in this table are typical properties and do not constitute a specification. Tested in accordance with EN 13523.
2. For health and safety datasheets contact the Colorcoat Connection® helpline.

If you have any questions or for further information click here to contact us.

Order samples online for Colorcoat HPS200 Ultra®

Our hand samples can assist in colour selection and finalising product specification.

You can order samples by contacting the Colorcoat Connection® helpline +44 (0) 1244 892434.

If you have any questions or for further information click here to contact us.

At Tata Steel we are committed to making the products society needs and to making them in the most responsible way. Our commitment to sustainability also means we actively manage our impacts and contribution throughout the full life of our products - with our suppliers, within our own operations, through the supply chains we serve and by taking responsibility for recycling steel. Colorcoat HPS200 Ultra™ has achieved BES 6001 responsible sourcing certificate which reinforces our commitment to sustainability.

Life Cycle Assessment
We constantly strive to ensure that the manufacturing processes and materials used to manufacture Colorcoat HPS200 Ultra™ are the most sustainable available. Moreover, the enhanced robustness and durability of Colorcoat HPS200 Ultra™ mean that it significantly outperforms other pre-finished steel in terms of environmental impacts over the full life cycle.

System environmental assessment
In the UK all roof and wall systems using pre-finished steel achieve a Green Guide A+ rating. Manufacture and processing of Colorcoat HPS200 Ultra™ into building envelope products, through our approved supply chain, can meet the responsible sourcing criteria for BREEAM. Our manufacturing site has an environmental management system which has been certified to ISO 14001.

Recycling
Colorcoat HPS200 Ultra™ is truly recyclable without any loss of quality, time after time. There is a well established and very efficient steel recycling infrastructure which ensures that all steel collected at end of life goes back into steel manufacture. Through this efficient recycling of steel, the environmental investment in steel-making is never wasted, making steel the most sustainable construction material.

If you have any questions or for further information click here to contact us.

FIRE PERFORMANCE

External fire performance for roof covering products

Colorcoat HPS200 Ultra™ when used as a roof covering can be classed as BROOF(t1), BROOF(t2), and BROOF(t3) without further testing, in accordance with Commission Decision 2005/403/EC for all gauges ≥ 0.4mm and for all colours in the product range for single sided and 200/100 product.
Colorcoat HPS200 Ultra™ has been tested to EN 1187 test method 4 and can be classified according to EN 13501-5 as BROOF(t4) for all gauges ≥ 0.4mm and for all colours in the product range for all single and double sided products.

Reaction to fire performance

Colorcoat HPS200 Ultra™ has been tested to EN 13823 and EN 11925-2 and can be classified in accordance with EN 13501-1 as C-s2, d0. This classification is valid for all gauges ≥ 0.46mm and for all colours for single sided product.

For double sided products contact Tata Steel.

INTERIOR PERFORMANCE

Colorcoat HPS200 Ultra™ has been tested and proven to provide the highest level of corrosion protection for interiors.

Used either single or double sided Colorcoat HPS200 Ultra™ is the most suited and recommended pre-finished steel product for demanding and corrosive internal environments.

Excellent test results mean that Colorcoat HPS200 Ultra™ has been classified as a CPI5 product as per EN 10169:2010.  This is the highest level of classification available for interiors meaning that it is suitable for the most demanding internal environments such as swimming pools and sewage treatment and energy from waste plants.

As shown in the internal environments table below means that Colorcoat HPS200 Ultra™ provides corrosion protection in ‘very aggressive’ internal environments as well as having chemical resistance properties.
