Trapes profiles - Norway
These trapezoidal profiles are classical profiled steel panels for use on roofs or facades
In modern construction projects these panels are being combined in entirely new ways - often with other materials and other profiles. They are just as economical in terms of square metres and installation as always.
Trapezoidal panels offer a wealth of wonderful options for new construction, extension and renovation projects alike. In the agricultural sector they are typically used for all kinds of outhouses (stables, barns, etc.).
Trapezoidal profiles can also be supplied with an anti-condensation coating, Constop Filt. Trapezoidal profiles are available in different materials and coatings e.g; Colorcoat HPS200 Ultra® and Colorcoat® PE 25.

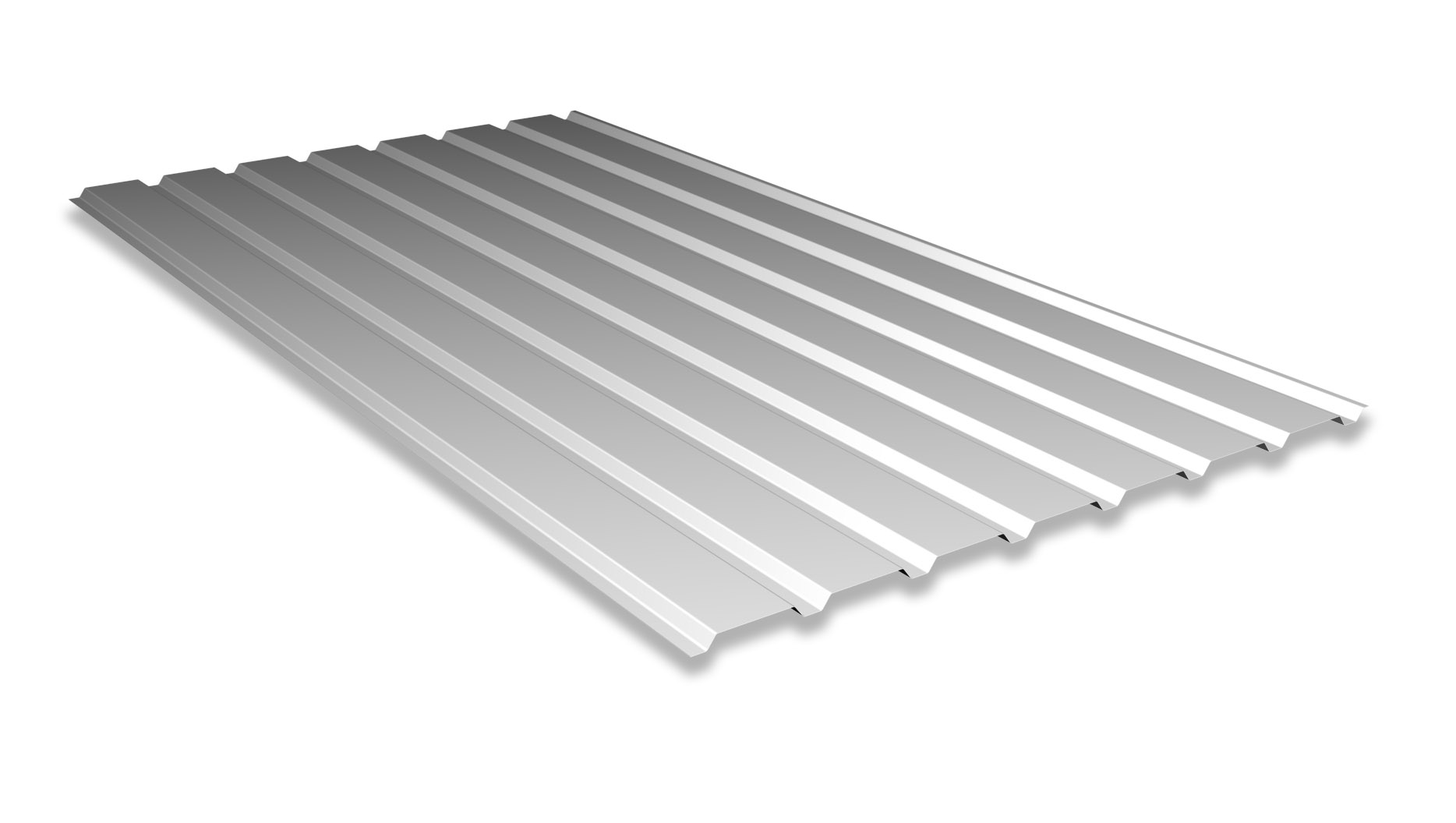

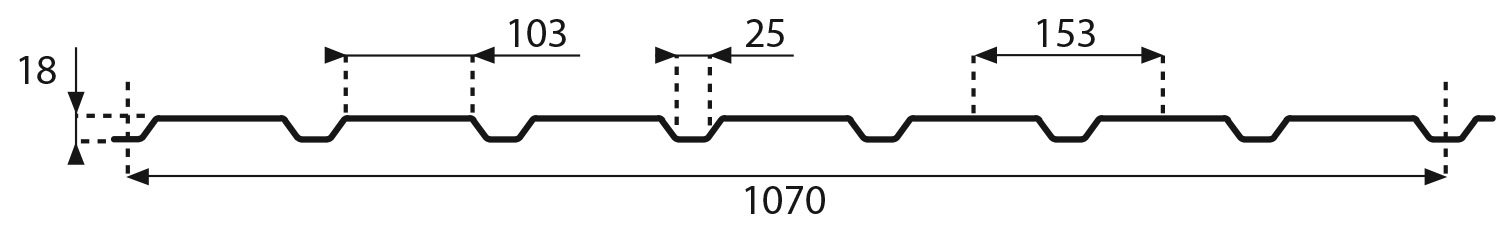

EN-Construction-Product-Wall-Trapezoidal profiles Nordics - 18W 1070
EN-Construction-Product-Trapezoidal profiles Nordics - 18W 1070 | Technical information
| Technical data 18W.1070 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height | 18mm |
| Width: | 1070mm |
| Total width: | 1115mm |
| Min. length: | 500mm |
| Max. length: | 7500mm |
| Screws per m2: | 8 stk 4.9x35, 4 stk 4.8x20 |
| Surface: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
| Vekt | |
|---|---|
| Thickness mm | Weight kg/m2 |
| 0,50 | 4,70 |
| 0,60 | 5,60 |
- Can be ordered with Constop Filt.
EN-Construction-Product-Trapezoidal profiles Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma Trapezoidal DOPs
Colorcoat Prisma Trapezoidal DoPs

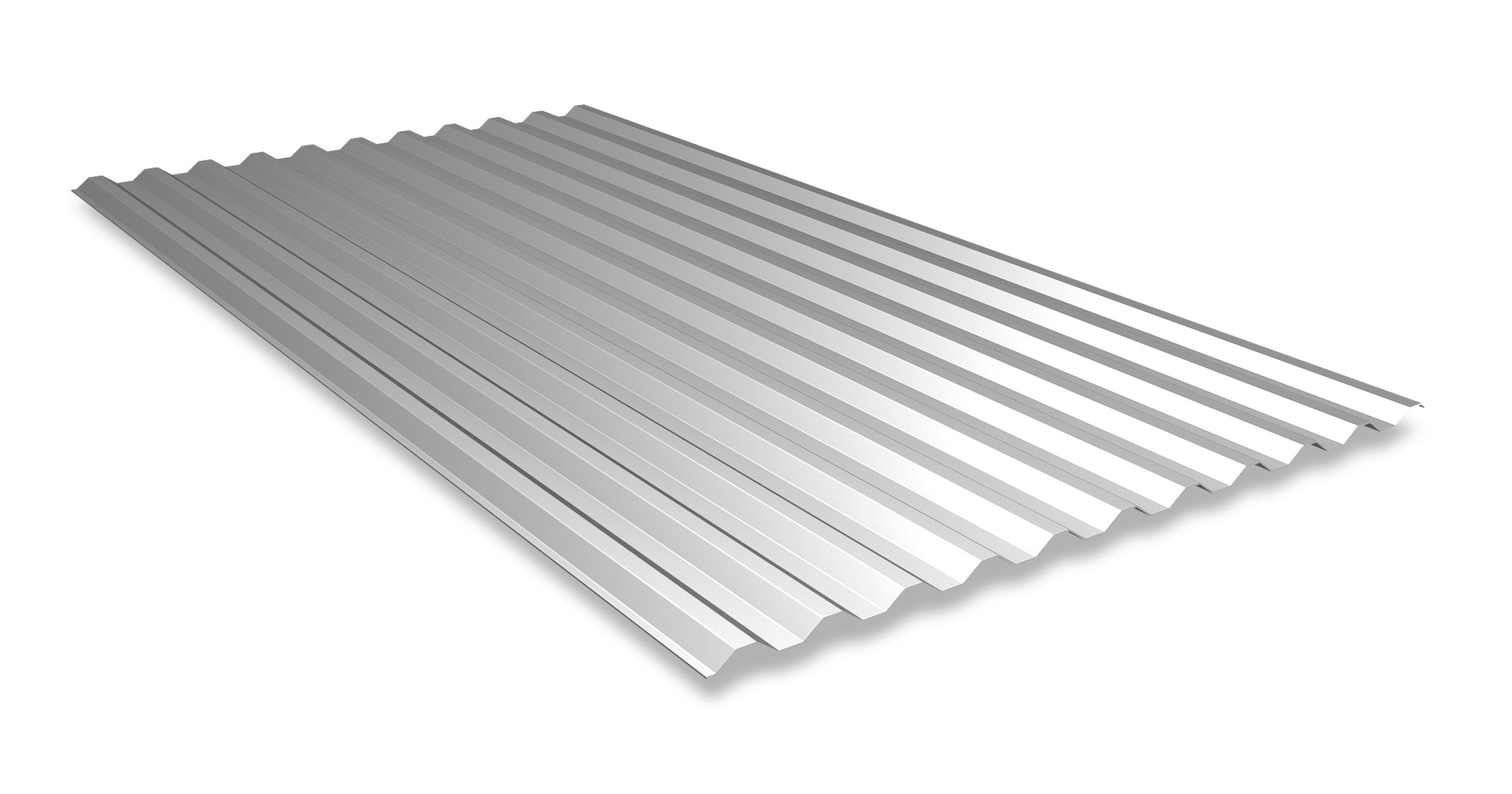

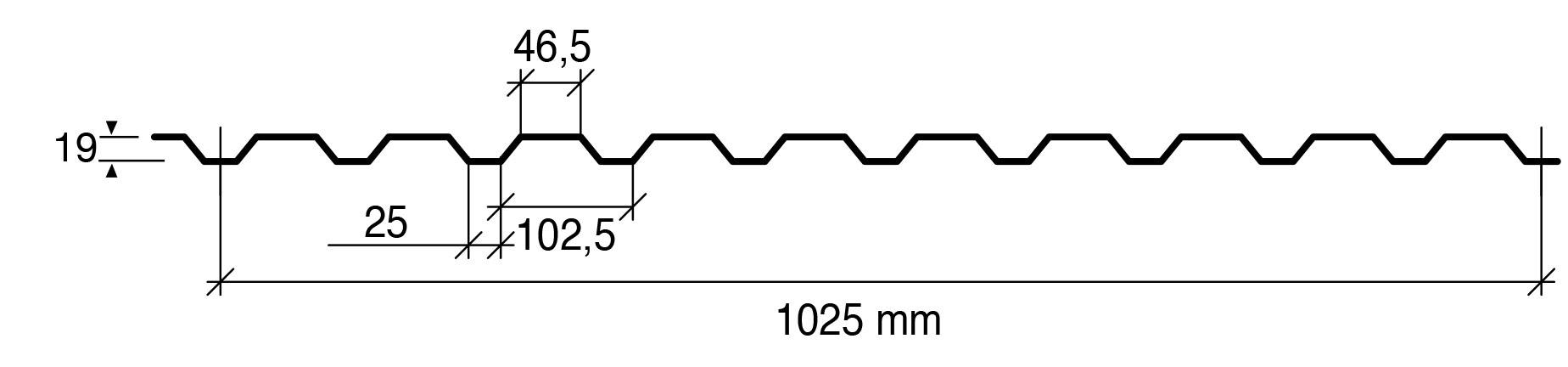

EN-Construction-Product-Wall-Trapezoidal profiles Nordics - 19W.1025
EN-Construction-Product-Wall=Trapezoidal profiles Nordics - 19W.1025 | Tekniske data
| Technical data 19W.1025 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height: | 19mm |
| Width: | 1025mm |
| Total width: | 1090mm |
| Min. length: | 500mm |
| Max. lengthe: | 8000mm |
| Screws per m2: | 8 stk 4.9x35, 4 stk 4.8x20 |
| Surface: | Colorcoat HPS200 Ultra®, Colorcoat® PE 25 (polyester), Colorcoat Prisma®, AluZink |
| Vekt | |
|---|---|
| Thickness mm | Weight kg/m2 |
| 0,50 | 5,00 |
| 0,60 | 5,70 |
| 0,65 | 5,70 |
- Can be ordered with Constop Filt.
If you have any questions or for further information click here to contact us.
EN-Construction-Product-Trapezoidal profiles Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma Trapezoidal DOPs
Colorcoat Prisma Trapezoidal DoPs

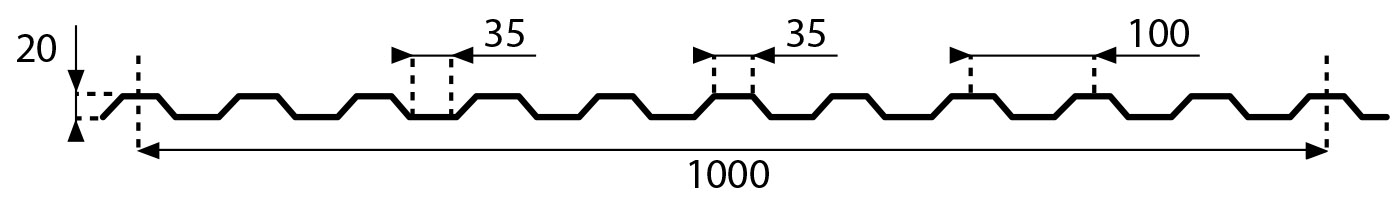

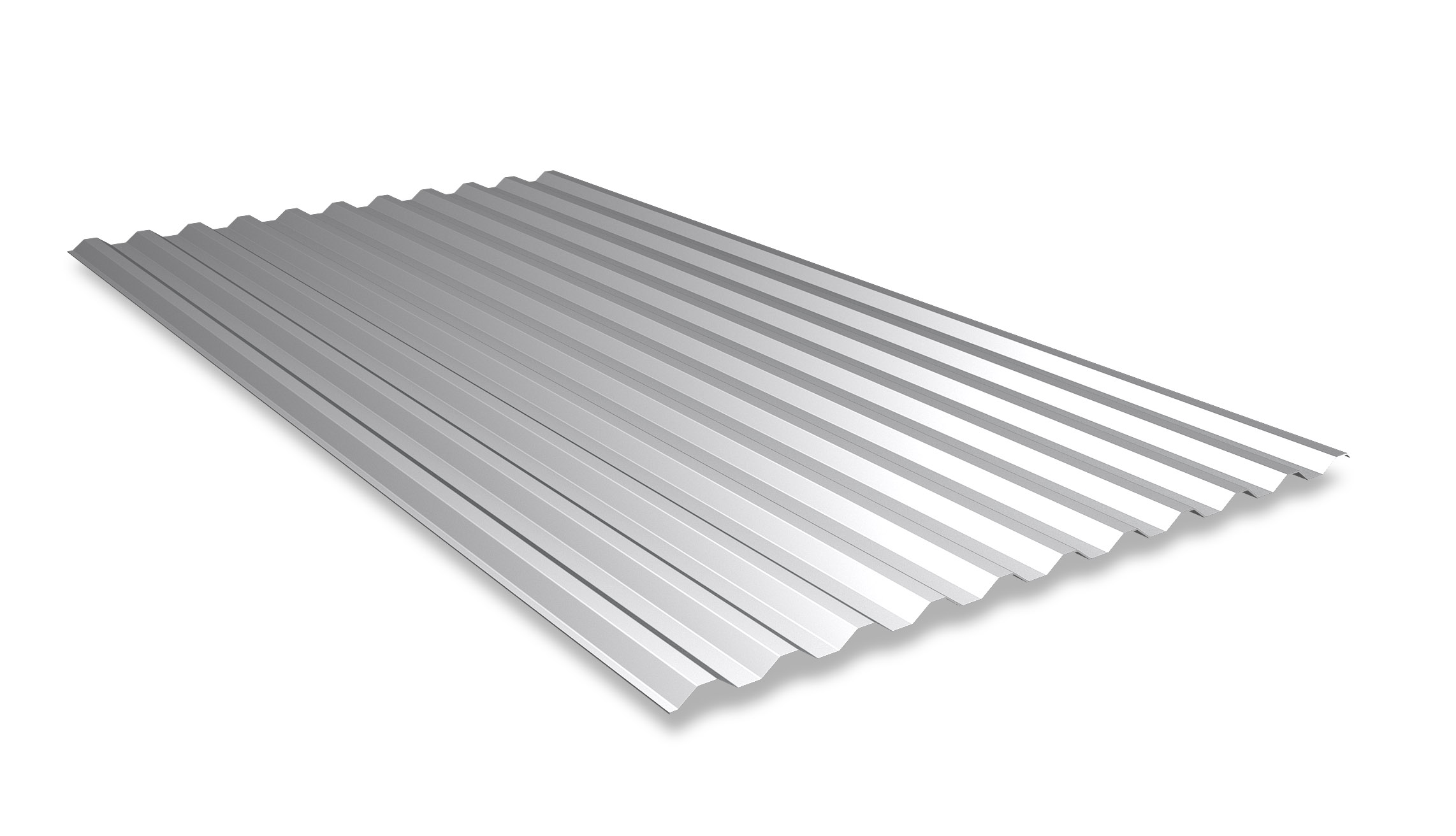

EN-Construction-Product-Wall-Trapezoidal profiles Nordics - 20W 1000
EN-Construction-Product-Wall-Trapezoidal profiles Nordics - 20W 1000 | Technical information
| Technical data 20W.1000 | |
|---|---|
| Thickness: | 0,50/0,60/0,65 mm |
| Height: | 20 mm |
| Width: | 1000 mm |
| Total width: | 1090 mm |
| Min. length: | 500 mm |
| Max. length: | 8000 mm |
| Screws per m2: | 6 stk 4.9x35, 4 stk 4.8x20 |
| Surface: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,50 | 4,80 |
| 0,60 | 5,80 |
- Can be ordered with Constop Filt.
- Can be ordered with rubber strip.
- If you have any questions or for further information click here to contact us.
EN-Construction-Product-Trapezoidal profiles Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma Trapezoidal DOPs
Colorcoat Prisma Trapezoidal DoPs

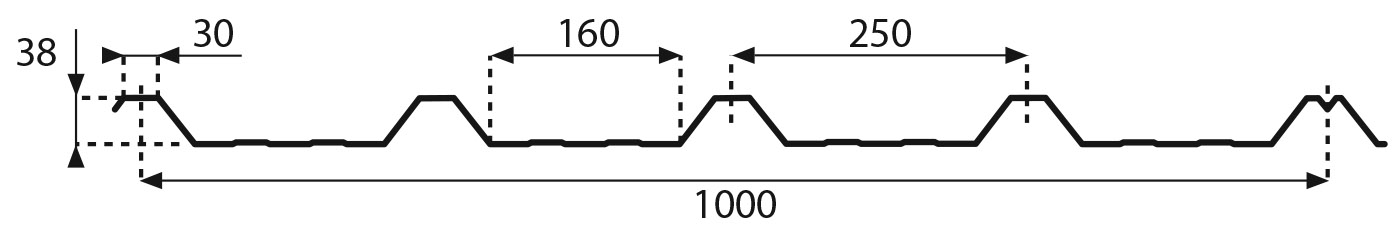

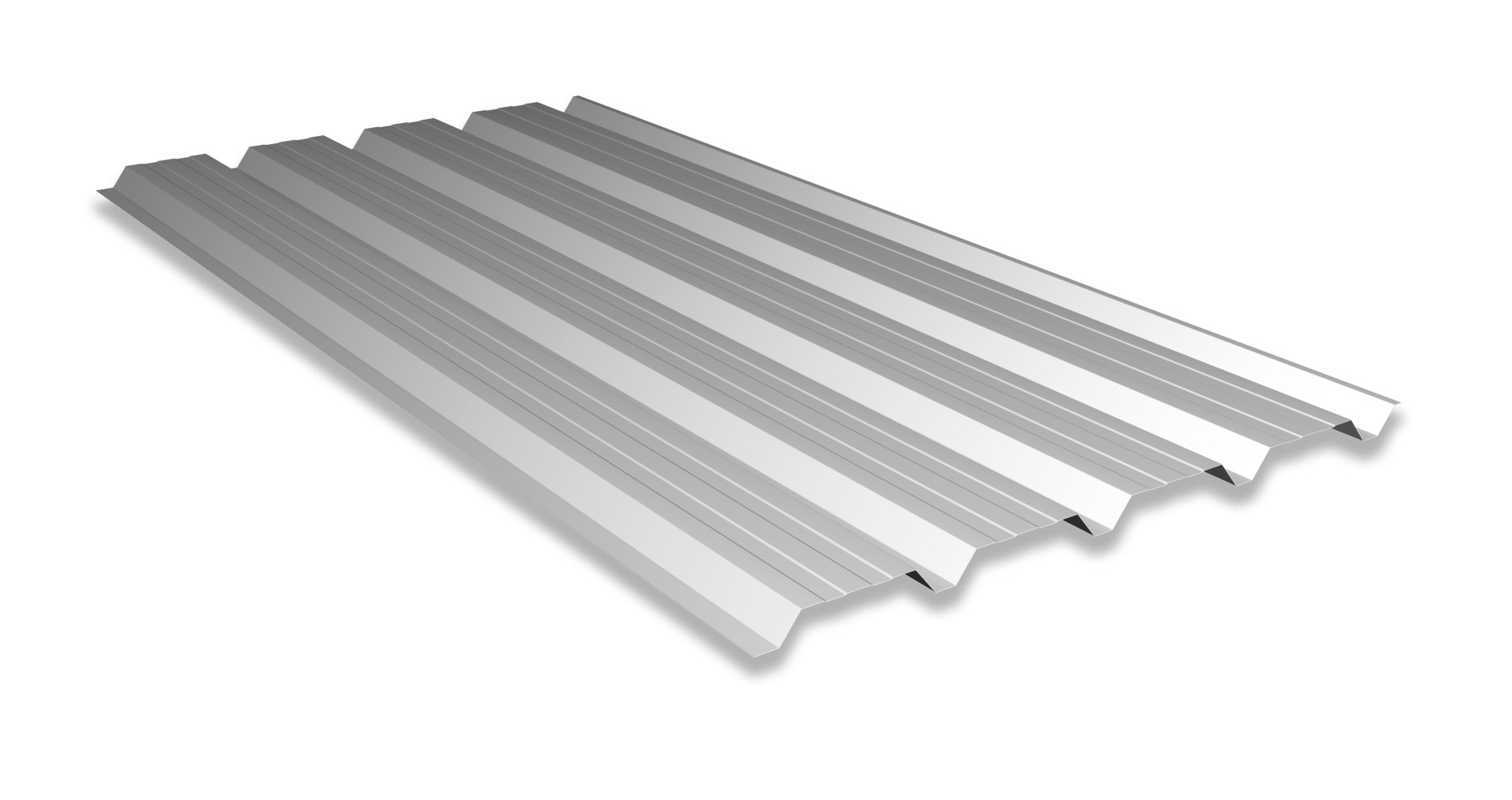

EN-Construction-Product-Wall-Trapezoidal profiles Nordics - 38W 1000
EN-Construction-Product-Wall-Trapezoidal profiles Nordics - 38W 1000 | Technical information
| Technical data 38W.1000 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height: | 38mm |
| Width: | 1000mm |
| Total width: | 1100mm |
| Min. length: | 500mm |
| Max. length: | 10 000mm |
| Screws per m2 | 8 stk 4.9x35, 4 stk 4.8x20 |
| Surface: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,50 | 5,40 |
| 0,60 | 6,30 |
| 0,65 | 6,30 |
- Can be ordered with Constop Filt.
If you have any questions or for further information click here to contact us.
EN-Construction-Product-Trapezoidal profiles Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma Trapezoidal DOPs
Colorcoat Prisma Trapezoidal DoPs

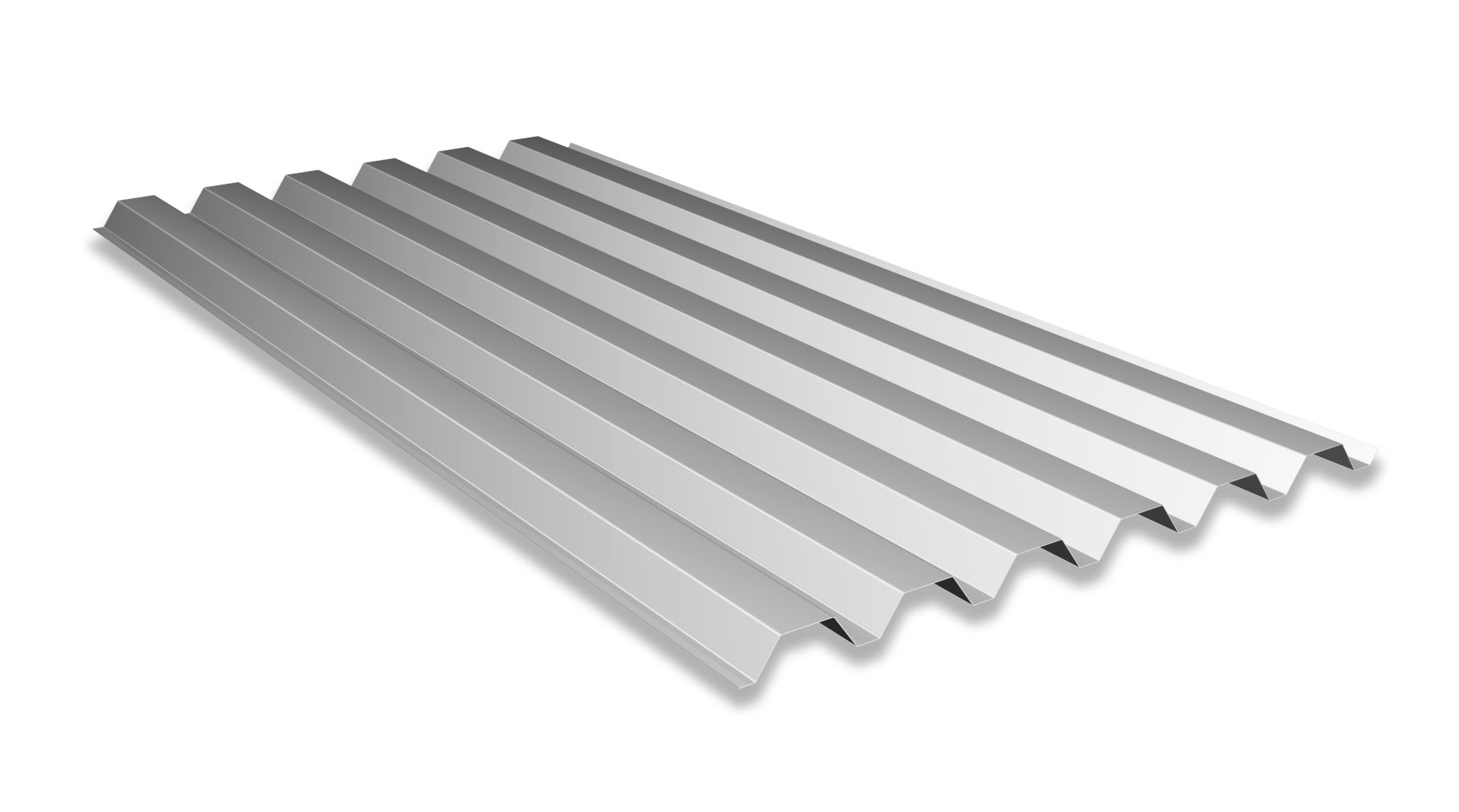

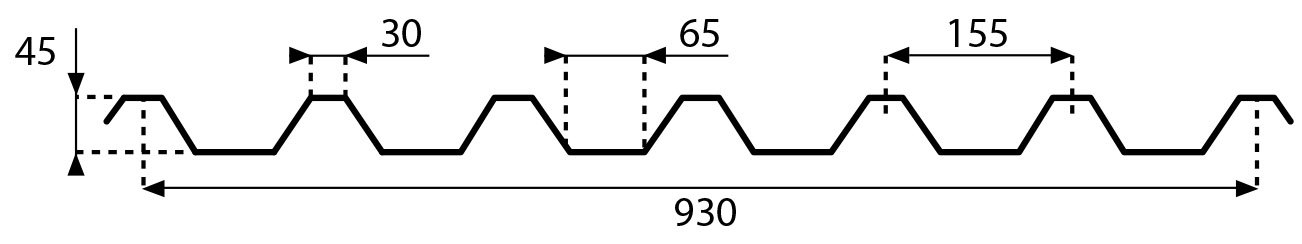

EN-Construction-Product-Wall-Trapezoidal profiles Nordics - 45W 950
EN-Construction-Product-Wall-Trapezoidal profiles Nordics - 45W 950 | Technical information
| Teknisk data 45W.930 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height: | 45mm |
| Width: | 930mm |
| Total width: | 990mm |
| Min. length: | 500mm |
| Max. lengthe: | 10 000mm |
| Screws per m2: | 8 stk 4.9x35, 4 stk 4.8x20 |
| Overflate: | Colorcoat HPS200 Ultra®, Colorcoat® PE25 (polyester), Colorcoat Prisma®, AluZink |
| Vekt | |
|---|---|
| Thickness mm | Weight kg/m2 |
| 0,50 | 4,80 |
| 0,60 | 5,80 |
- Can be ordered with Constop Filt
If you have any questions or for further information click here to contact us.
EN-Construction-Product-Trapezoidal profiles Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma Trapezoidal DOPs
Colorcoat Prisma Trapezoidal DoPs
