Pre-finished steel for cladding

Colorcoat® PE 15

The benchmark for internal liner, ensuring light reflectivity and reducing lighting costs.

Colorcoat® PE 15 is the benchmark for the internal liner of built up and composite roof and wall cladding systems. Most commonly supplied in white to ensure light reflectivity in the internal environment and reduce lighting costs.

Internal liner sheets
Available in popular colours including RAL 9002, 9003, 9010 and 7035 to ensure light reflectivity in the internal environment.

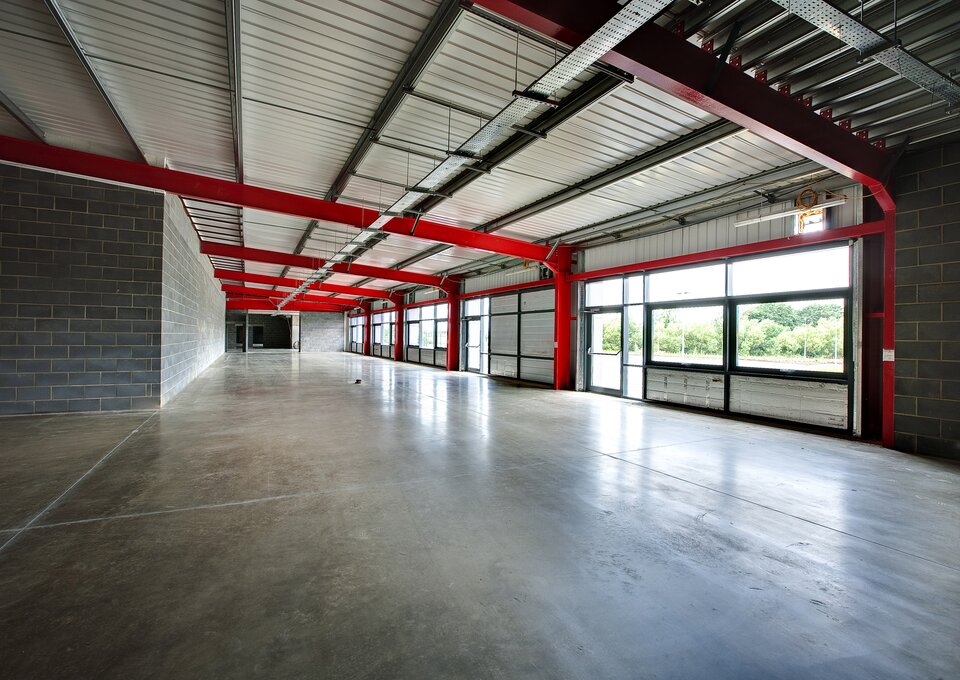

Colorcoat PE 15 used as internal liner for roof and wall cladding

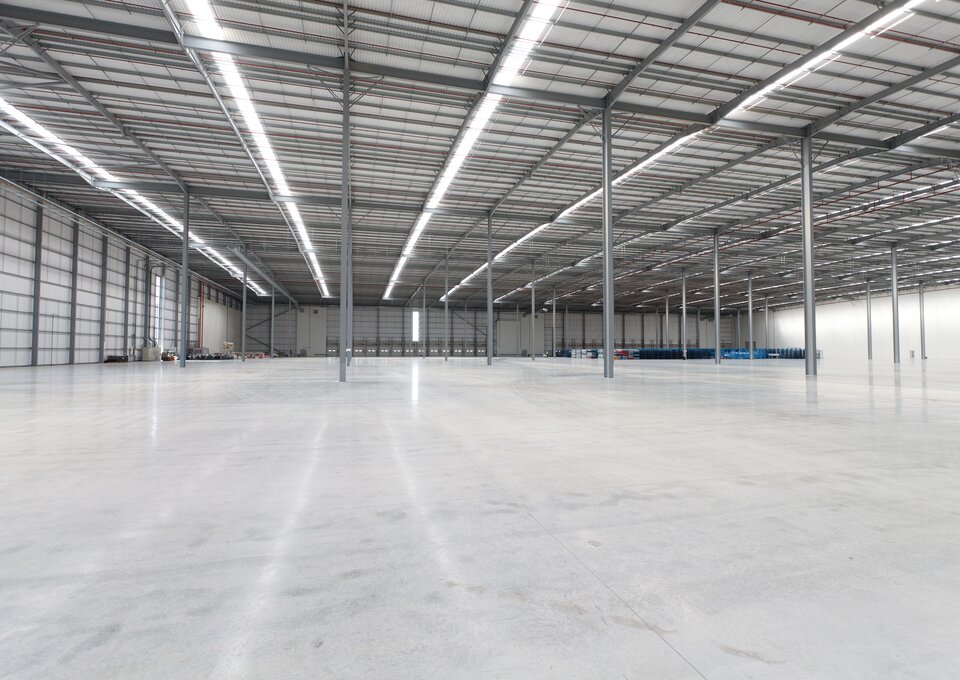

Colorcoat PE 15 used as internal liner for roof and wall cladding
Product specification

EN-Construction-Product-Colorcoat PE 15-default

Colorcoat PE 15
Product specification

EN-Construction-Product-Colorcoat PE 15 | Product benefits

Product benefits
  • 15μm polyester coating for internal applications.
  • Galvanised substrate with Zinc or MagiZinc® metallic coating offering very good corrosion resistance.
  • Available in popular colours including RAL 9002, 9003, 9010 and 7035 to ensure light reflectivity in the internal environment.
  • High-performance reverse side backing coat specially formulated for use in construction applications, providing good foam adhesion to standard systems.
  • Provides an efficient and durable interior product that should last the life of buildings in normal, dry, controlled and unpolluted environments.
  • Colorcoat® PE15 made in the UK is certified to BES 6001 Responsible Sourcing standard.

EN-Construction-Product-Colorcoat PE 15 | Product performance

Product performance
  • Colorcoat® PE 15 is carefully manufactured in a controlled process to ensure consistent quality and is suitable for interior roof and wall liner trays, cassette systems and sandwich panels in dry and unpolluted environments.
  • Colorcoat® PE 15 is not suitable for external applications and to ensure it is fitted in the optimum condition, outdoor storage should be minimised during the construction process.
  • Colorcoat® PE 15 can be expected to last the life of the building in normal controlled and unpolluted environments.
  • Tata Steel has a range of Colorcoat® products suitable for different environments and applications.

EN-Construction-Product-Colorcoat PE 15 | Typical properties

Typical properties
Properties  Test Standard
Nominal organic
coating thickness
μm*15EN 13523-1
Specular gloss (60°)%30 - 50EN 13523-2
Flexibility:
Minimum bend radius
T5TEN 13523-7
AdhesionT≤ 2TEN 13523-7
Corrosion resistance:
Humidity
hours500EN 13523-26
Reaction to fire
classification*
 A1EN 13501-1
Internal environment
classification
 CPI2EN 10169

*μm = micron

General notes
The figures contained in this table are typical properties and do not constitute a specification. These figures relate to the topcoat and solid colours.

* Fire classification is subject to gauge. Double sided option is not tested and quoted fire classification may therefore not be applicable. Please contact Tata Steel for further information.
