BIM and more...
the DNA Profiler has been designed to minimise data overload and will allow users, at whatever stage they are in the construction process, to retrieve the exact level of BIM data they require – and in formats including Autodesk Revit, ARCHICAD, Tekla, Allplan and Trimble SketchUp.
The COMBINED platform is a new building envelope design and configuration plug-in tool created for professional architects, specifiers, contractors and procurement managers.
The plug-in works directly with the Revit, ArchiCAD, Allplan, SketchUp and AutoCAD platforms, providing an interface through which architectural professionals can independently configure and manage a system build-up from the full range of Tata Steel building envelope products.

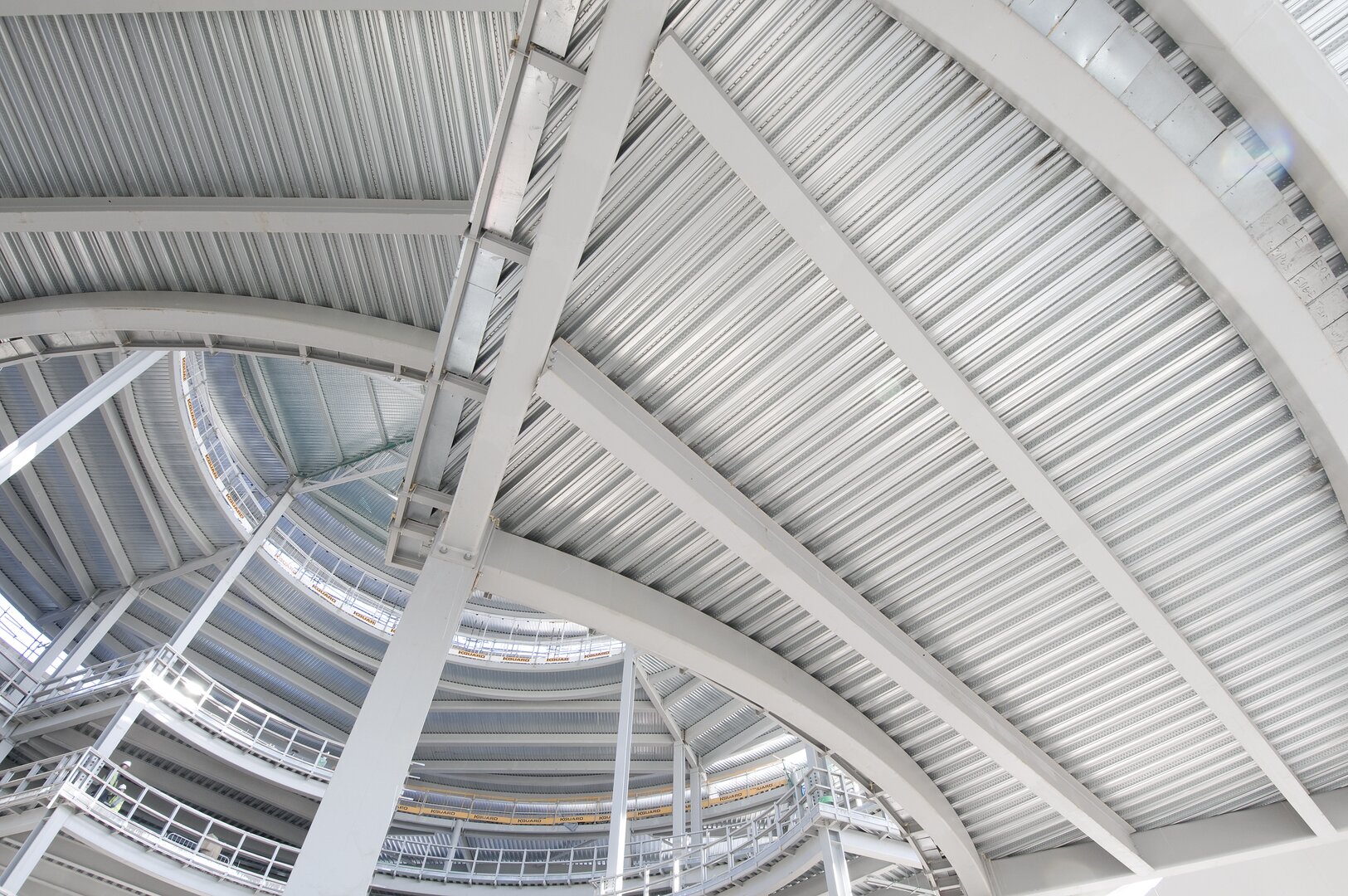

Decking specification software
Our ComFlor® 9.0.34 Software analyses each of the ComFlor® composite floor decks in construction stage, service stage and for fire resistance, under a wide range of loading configurations, helping our customers with their floor deck design.
The increasing complexity of roof decking projects makes any software aimed at easing the process very welcome indeed. To aid this, Tata Steel introduced the RoofDek quick selector. The RoofDek quick Selector augments Tata Steel’s suite of roof decking software, which includes RoofDek Analysis Software.
Colorcoat® digital tools
CO2 tool
Together with Oxford Brookes University we have developed a building operational carbon calculation tool that can calculated the effect of changes to the building envelope, inclusion of renewables and internal lighting and reflectivity on building CO2 emissions and Part L compliance; and building energy use and costs

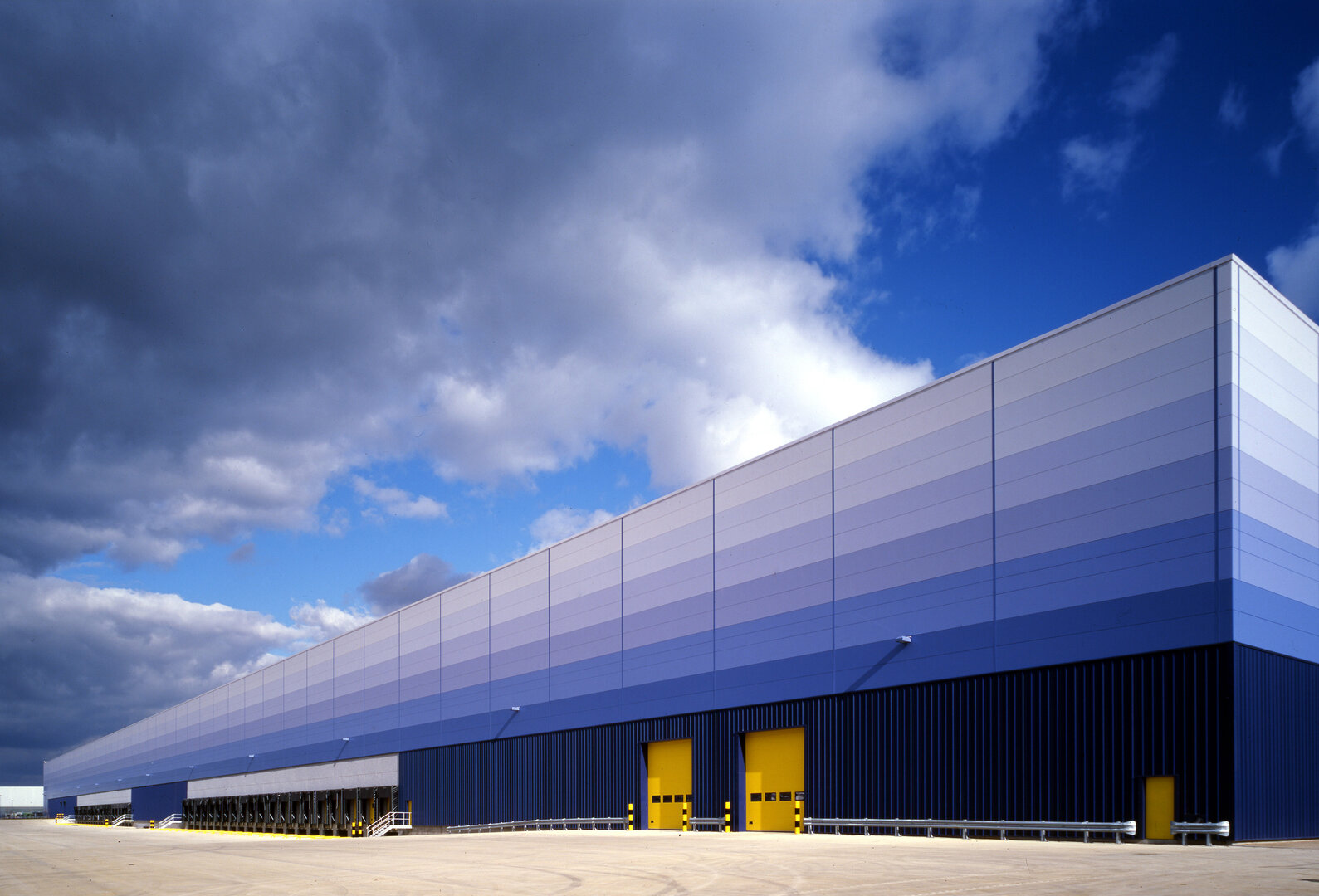

Colorcoat® Compass
Colorcoat® Compass is a digital colour system, available via Tata Steel’s building envelope representatives and key Supply Chain Partners. It helps designers to colour match to a specific colour, search the standard and previously matched colours available, or search using RAL colour codes to make an informed colour choice for their Colorcoat® pre-finished steel product selection based on availability, feasibility and level of guarantee.

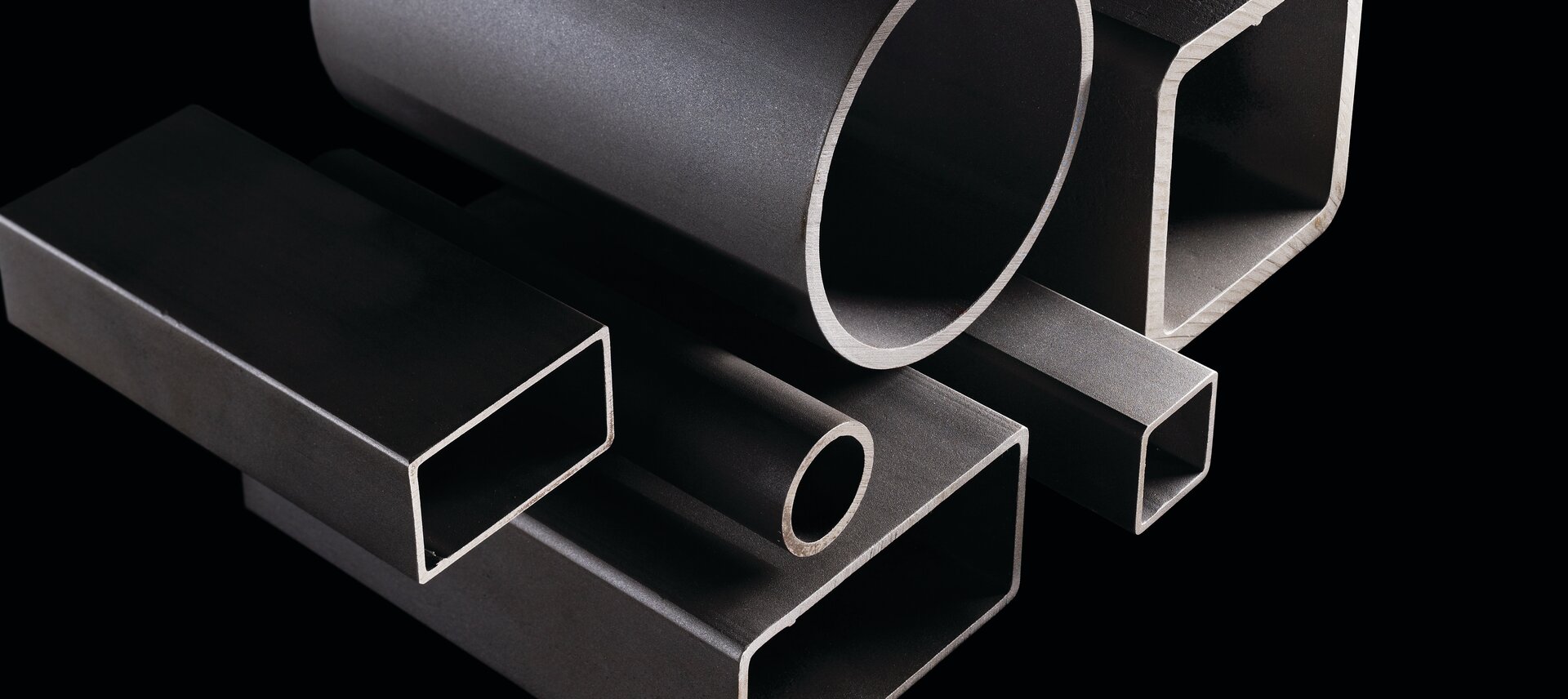

Tata Steel tubular software is also available to designers and specifiers of Tata Steel's tubes
Our software is offered to support Celsius 355NH Hot Finished Structural Hollow Sections to EN 10210:
-
Tata Steel Tubular Welded Joint Design software - for the design of Celsius 355 tube to tube welded joints as used in trusses. Covers T, Y, X, K and N-joints for CHS to CHS and SHS/RHS to SHS/RHS
-
Tata Steel Concrete Filled Tube software - for the design of concrete filled Celsius 355 tubular columns at ambient and fire temperature
Note: The software is specifically written for Celsius 355NH Hot Finished Structural Hollow Sections to EN 10210 and is not suitable for use with other products, especially cold formed products.
For more information or a copy of the software please contact technicalmarketing@tatasteeleurope.com with your project name and location and which software you are interested in. The software remains the property of Tata Steel Europe Limited.
Only a phone call away or online, our resident team of construction experts are on hand to help with your enquiries on any aspect of design, specification, use and performance related issues of metal in the built environment.
