Roof profiles
Trapes profiles - Norway
These trapezoidal profiles are classical profiled steel panels for use on roofs or facades
In modern construction projects these panels are being combined in entirely new ways - often with other materials and other profiles. They are just as economical in terms of square metres and installation as always.
Trapezoidal panels offer a wealth of wonderful options for new construction, extension and renovation projects alike. In the agricultural sector they are typically used for all kinds of outhouses (stables, barns, etc.).
Trapezoidal profiles can also be supplied with an anti-condensation coating, Constop Filt. Trapezoidal profiles are available in different materials and coatings e.g; Colorcoat HPS200 Ultra® and Colorcoat® PE 25.
Product specification
EN-Construction-Product-Roof-Trapezoidal profiles Nordics - 18R 1070

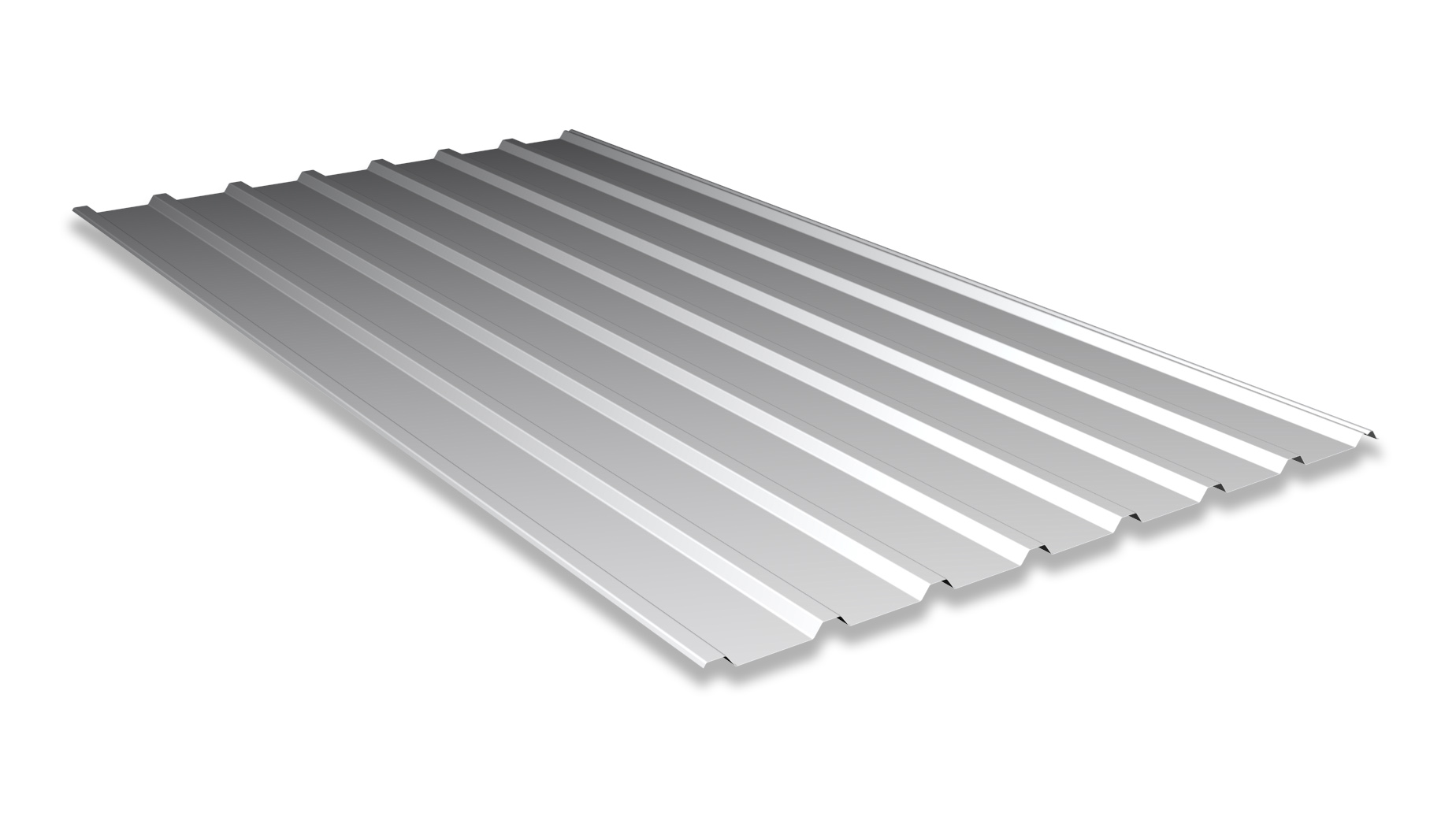

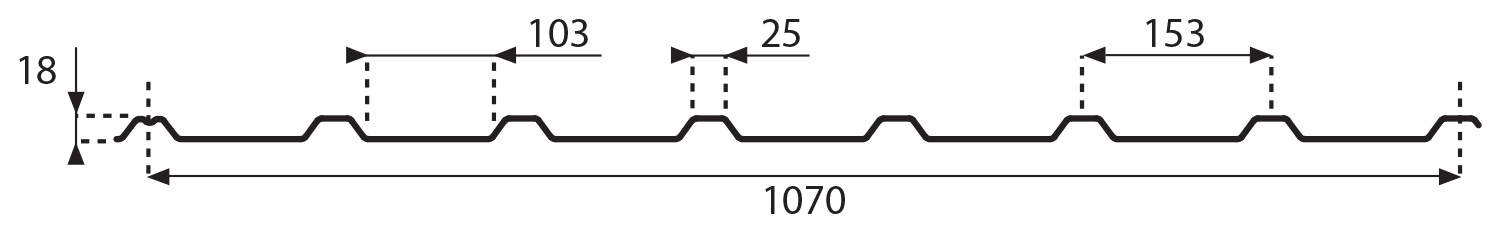

18R 1070
Specification details
EN-Construction-Product-Roof-Trapezoidal profiles Nordics - 18R 1070 | Technical information
Technical information
| Technical data 18R.1070 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height | 18mm |
| Width: | 1070mm |
| Total width: | 1115mm |
| Min. length: | 500mm |
| Max. length: | 7500mm |
| Screws per/m2: | 8 stk 4.9x35, 4 stk 4.8x20 |
| Surface: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,50 | 4,70 |
| 0,60 | 5,60 |
- Can be ordered with Constop Filt.
EN-Construction-Product-Trapezoidal profiles Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma Trapezoidal DOPs
Colorcoat Prisma Trapezoidal DoPs
Prisma Trapezoidal DOPs.zip1.19 MB
EN-Construction-Product-Roof-Trapezoidal profiles Nordics - 19R.1025

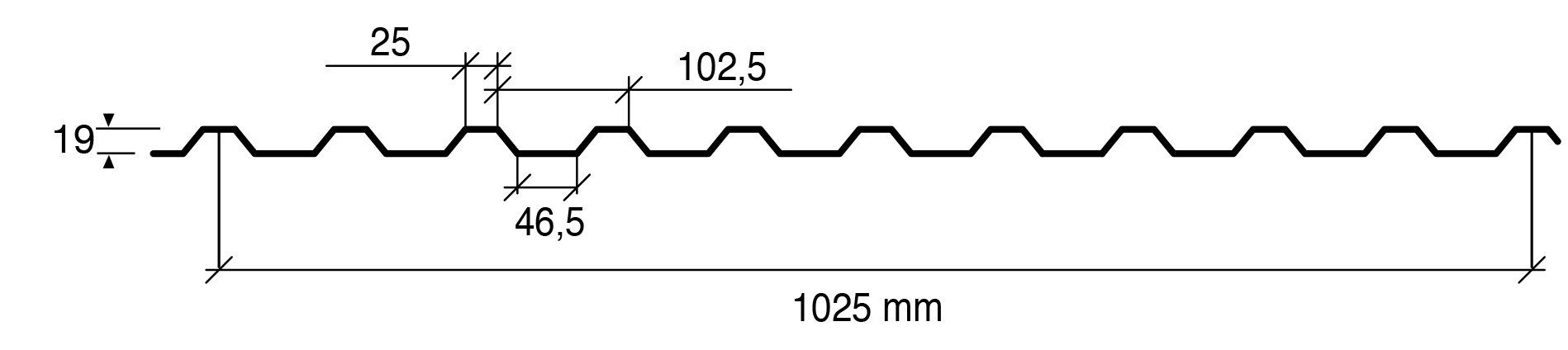

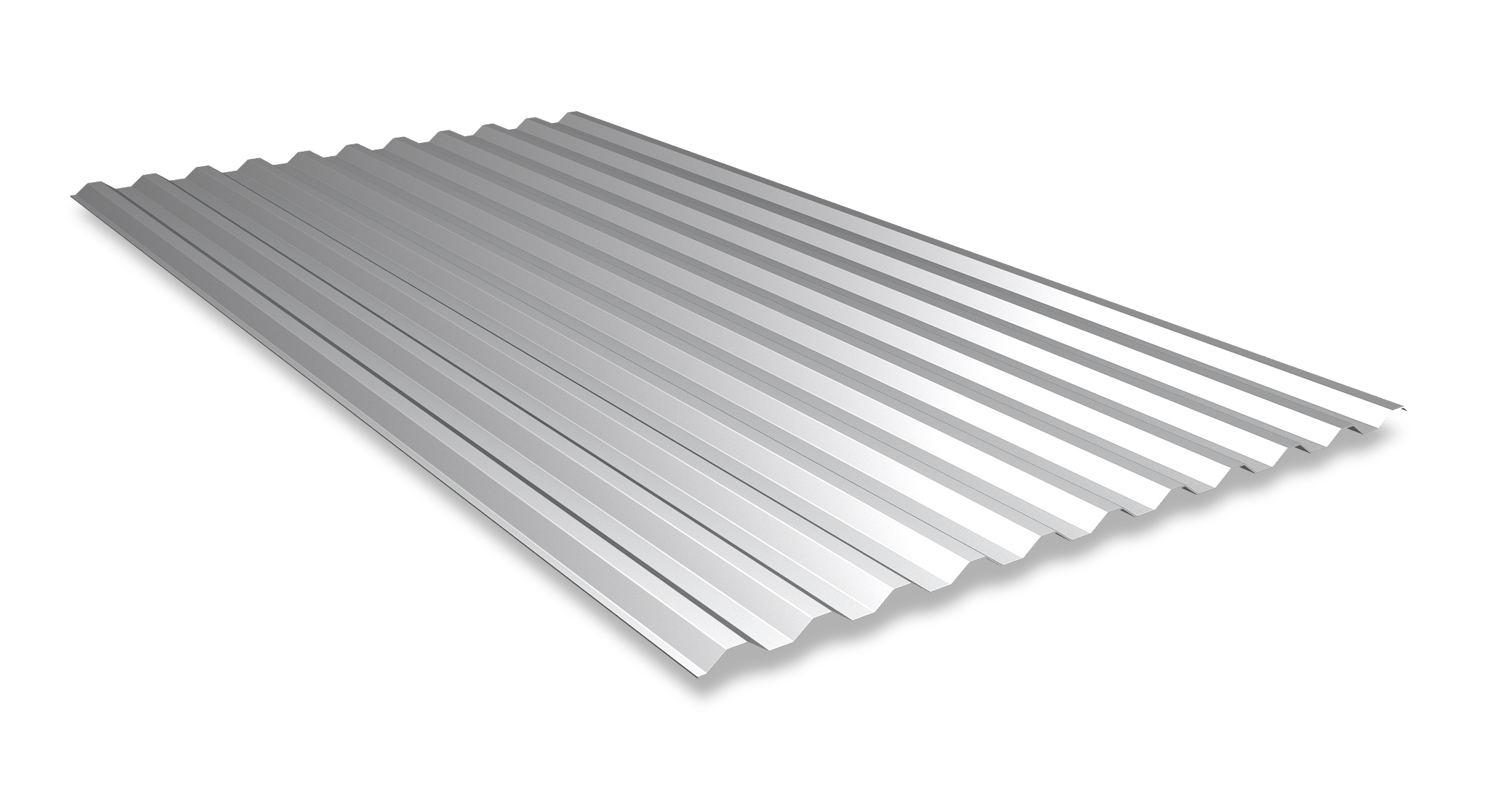

19R.1025
Specification details
EN-Construction-Product-Roof-Trapezoidal profiles Nordics - 19R.1025 | Technical data
Technical data
| Technical data 19R.1025 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height: | 19mm |
| Width: | 1025mm |
| Total width: | 1090mm |
| Min. length: | 500mm |
| Max. length: | 8000mm |
| Screws per m2: | 8 stk 4.9x35, 4 stk 4.8x20 |
| Surface: | Colorcoat HPS200 Ultra®, Colorcoat® PE 25, Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,50 | 5,00 |
| 0,60 | 5,70 |
| 0,65 | 5,70 |
- Can be ordered with Constop Filt.
EN-Construction-Product-Trapezoidal profiles Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma Trapezoidal DOPs
Colorcoat Prisma Trapezoidal DoPs
Prisma Trapezoidal DOPs.zip1.19 MB
EN-Construction-Product-Roof-Trapezoidal profiles Nordics - 20R 1000
20R 1000
Specification details
EN-Construction-Product-Roof-Trapezoidal profiles Nordics - 20R 1000 | Technical information
Technical information
| Technicaldata 20R.1000 | |
|---|---|
| Thickness: | 0,50/0,60/0,65 mm |
| Height: | 20 mm |
| Width: | 1000 mm |
| Total width: | 1090 mm |
| Min. length: | 500 mm |
| Max. length: | 8000 mm |
| Screws per m2: | 6 stk 4.9x35, 4 stk 4.8x20 |
| Surface: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,50 | 4,80 |
| 0,60 | 5,80 |
- Can be ordered with Constop Filt.
- Can be ordered with rubber strip.
EN-Construction-Product-Trapezoidal profiles Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma Trapezoidal DOPs
Colorcoat Prisma Trapezoidal DoPs
Prisma Trapezoidal DOPs.zip1.19 MB
EN-Construction-Product-Roof-Trapezoidal profiles Nordics - 38R 1000

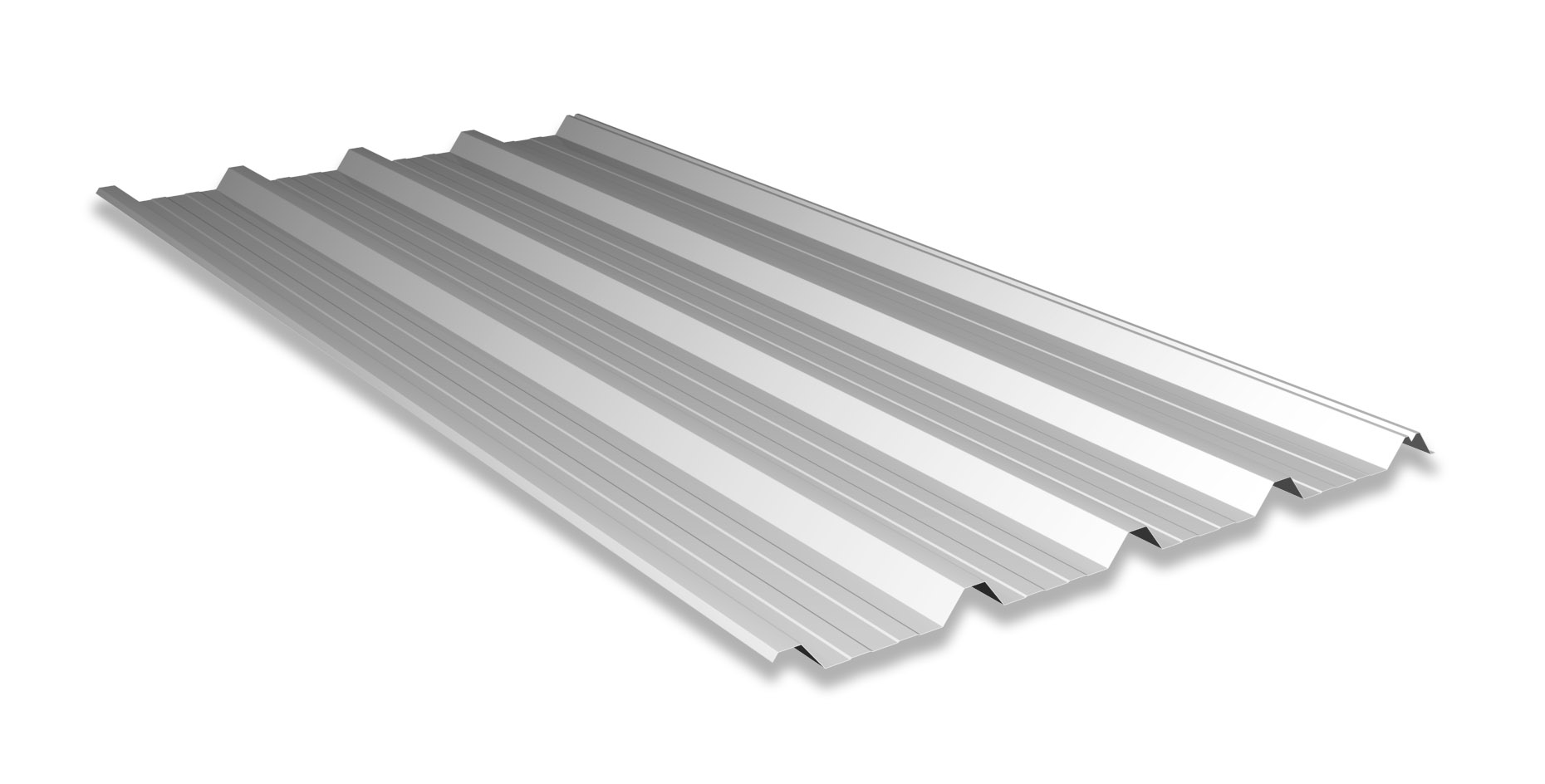

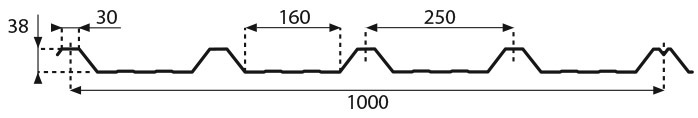

38R 1000
Specification details
EN-Construction-Product-Roof-Trapezoidal profiles Nordics - 38R 1000 | Technical information
Technical information
| Technicaldata 38R.1000 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height: | 38mm |
| Width: | 1000mm |
| Total width: | 1100mm |
| Min. length: | 500mm |
| Max. length: | 10 000mm |
| Screws per m2: | 8 stk 4.9x35, 4 stk 4.8x20 |
| Surface: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,50 | 5,40 |
| 0,60 | 6,30 |
| 0,65 | 6,30 |
- Can be ordered with Constop Filt.
EN-Construction-Product-Trapezoidal profiles Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma Trapezoidal DOPs
Colorcoat Prisma Trapezoidal DoPs
Prisma Trapezoidal DOPs.zip1.19 MB
EN-Construction-Product-Roof-Trapezoidal profiles Nordics - 45R 930

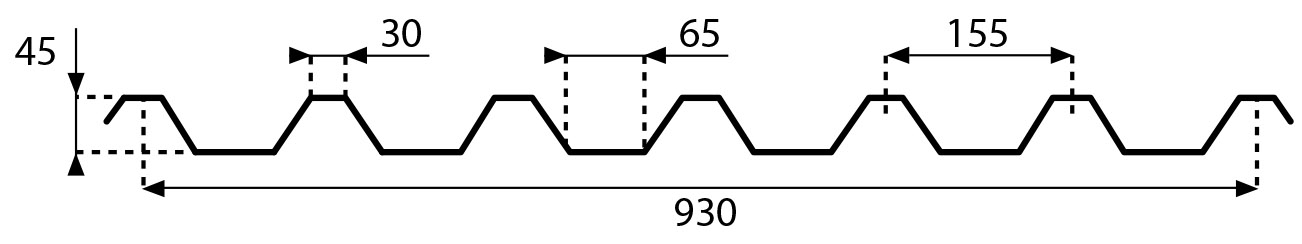

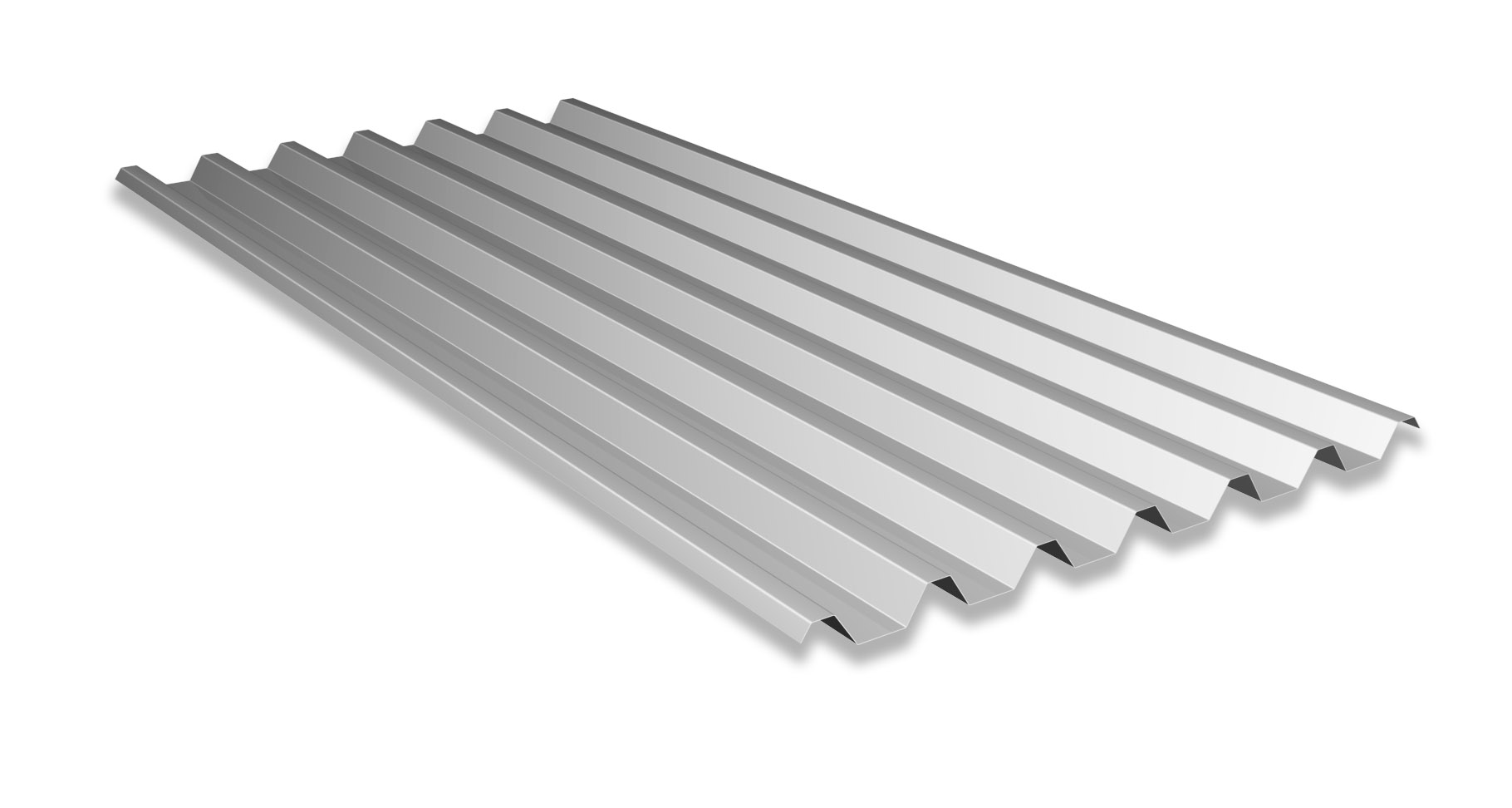

45R 930
Specification details
EN-Construction-Product-Roof-Trapezoidal profiles Nordics - 45R 930 | Technical information
Technical information
| Technical data 45R.930 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height: | 45mm |
| Width: | 930mm |
| Total width: | 990mm |
| Min. length: | 500mm |
| Max. length: | 10 000mm |
| Screws per m2: | 8 stk 4.9x35, 4 stk 4.8x20 |
| Surface: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,50 | 4,80 |
| 0,60 | 5,80 |
- Can be ordered with Constop Filt.
EN-Construction-Product-Trapezoidal profiles Nordics-downloads
Downloads
<p></p>
EN-Construction-Approval_or_Certificate-Colorcoat Prisma Trapezoidal DOPs
Colorcoat Prisma Trapezoidal DoPs
Prisma Trapezoidal DOPs.zip1.19 MB
