Electrolytic Chromium Coated Steel (ECCS)

Well-proven in a range of applications, our tin-free packaging steel delivers reliable quality for efficient processing.

50%

Overview

To meet your application and processing requirements, we offer reliable ECCS packaging steel in a wide choice of grades, thickness, surface finish and width

Our electrolytic chromium coated steel (ECCS) for packaging is well-proven in a range of applications. Providing an excellent substrate for lacquering, this tin-free steel is available in a wide choice of grades, thickness and surface finish to suit your processes and applications.

To ensure compliance with upcoming European legislation, we have developed a sustainable, replacement for conventional tin-free packaging steel, TCCT, available from Tata Steel Nederland. Find out more about TCCT here .

Packaging and related applications for our tin-free steel include:

easy-open ends
classic (standard) ends
twist-off caps
2-piece DRD
speciality packaging
microwaveable cans
bakeware

Product range overview

Overview

Manual

ECCS

Wide choice to meet your needs

We offer a wide choice of tin-free steel – tailoring our products to meet your required strength, surface finish and forming requirements. Our foodsafe ECCS packaging material is produced using Tata Steel’s blackplate.

Bespoke tempering and investment in both batch and continuous annealing ensure that we can match requirements for a variety of applications.

We supply tin-free packaging steel in a choice of:

single reduced and double reduced steel grades – with material tempered to match your strength and ductility requirements
thickness (gauge) – with scope for downgauging thanks to our direct rolling operations which produce thin-gauge material with increased strength
surface finish – to meet your processing needs and product performance requirements
width - up to 1070mm
oils – for protection in transit

Reliable quality for efficient canmaking and product performance

We have a proven track record in ECCS manufacture. Our fully-traceable tin-free products benefit from the dependable quality of our blackplate feedstock and ongoing investment at our dedicated packaging steel mills.

All of our processes – from initial pickling, through rolling, annealing, tempering and chromium coating – are carefully controlled and monitored. Process control is combined with rigorous inspection to deliver:

reliable mechanical properties – including earing properties required for 2-piece drawn can production
consistently good shape and dimensional tolerances – for efficient processing
precise surface coating chemistry – for reliable lacquering
homogenous coating coverage – for corrosion resistance (although ECCS is not suitable for highly acidic can contents)
excellent surface finish – at a roughness to match your requirement and achieved through careful control of both direct and temper mill rolling

Responsive service to suit your production demands

Our flexible, multi-site operations and robust supply chain infrastructure mean we can offer short lead times to suit your production demands.

Packaging steel can be supplied in:

coil or sheets
DOS or ATBC oil

Our approachable ECCS experts are happy to advise you on the best products to meet your needs. Please contact us to discuss your requirements.

Properties

Manual

ECCS

Relationship with standards

Our steel is supplied in accordance with the following standards:

Tinplate and ECCS (TFS)	Blackplate
Euronorm 10202	Euronorm 10205
ASTM 623 (on request)	-

Our operations are ISO 9001 certified.

Mechanical properties

					Yield / Proof	Tensile	Range
	Special	AISI / ASTM	BA / CA	SR / DR	strength (MPa)	strength (MPa)	(MPa)
TS200	Bake ware and extreme deformations		BA	SR	200	315	+/- 50
TS230*		T1	BA	SR	230	325	+/- 50
TS245*		T2	BA	SR	245	340	+/- 50
TS260*			BA	SR	260	360	+/- 50
TS275*		T3	BA	SR	275	375	+/- 50
TS290*			BA	SR	290	390	+/- 50
TS310			BA	DR	310	410	+/- 40
TS345	Aerosol components		BA	DR	345	400	+/- 50
TS370			BA	DR	370	420	+/- 40
TS480*	More formable DR grade		BA	DR	480	510	+/- 50
TS520*	Formable DR Grade	DR 7.5	BA	DR	520	-	+/- 50
TS500			BA	DR	500	-	+/- 50
TS550*			BA	DR	550	-	+/- 50
TH330*			CA	SR	330	375	+/- 50
TH415*		T4	CA	SR	415	435	+/- 50
TH435*		T5	CA	SR	435	460	+/- 50
TH460*			CA	DR	460	490	+/- 50
TH460N			CA	DR	460	-	+/- 50
TH480	Easy open and sanitary ends		CA	DR	480	-	+/- 50
TH520*		DR 7.5	CA	DR	520	-	+/- 50
TH520N			CA	DR	520	-	+/- 50
TH550*		DR 8	CA	DR	550	570	+/- 50
TH550N			CA	DR	550	-	+/- 50
TH580*			CA	DR	580	-	+/- 50
TH580N			CA	DR	580	-	+/- 50
TH620*		DR 9	CA	DR	620	-	+/- 50
TH620N			CA	DR	620	-	+/- 50

*Euronorm designation

Mechanical properties - D&I grades

Our tinplate for drawn and wall ironed (D&I) applications includes boron alloyed extra low carbon, continuously-annealed products to ensure excellent formability and highly efficient processing.

D&I grades			Yield / Proof	Tensile	Elongation
(B&B and food)	BA / CA	SR / DR	strength (MPa)	strength (MPa)	(%)
TH340	CA	SR	210	300	>20
TH360	CA	DR	300	380	>15
TH415	CA	DR	270	370	>20

Note: D&I products are tested without prior ageing.
We can supply other packaging steels with special properties such as minimum earing and deep drawing properties – please contact us.

Dimensions

Manual

ECCS

Dimensional capability

Product	Coils/sheets¹		Sheets
Product	Thickness	Width	Cut length
Single reduced (SR)	0.17 - 0.6 mm	650 - 1070 mm	457 - 1137 mm (width max. 1014 mm)
Double reduced (DR)	0.13 - 0.4 mm	650 - 1070 mm	457 - 1137 mm (width max. 1014 mm)
Width tolerance	Standard trim	(- 0.00, + 3.00 mm)
Width tolerance	Special trim	(- 0.00, + 1.00 mm)

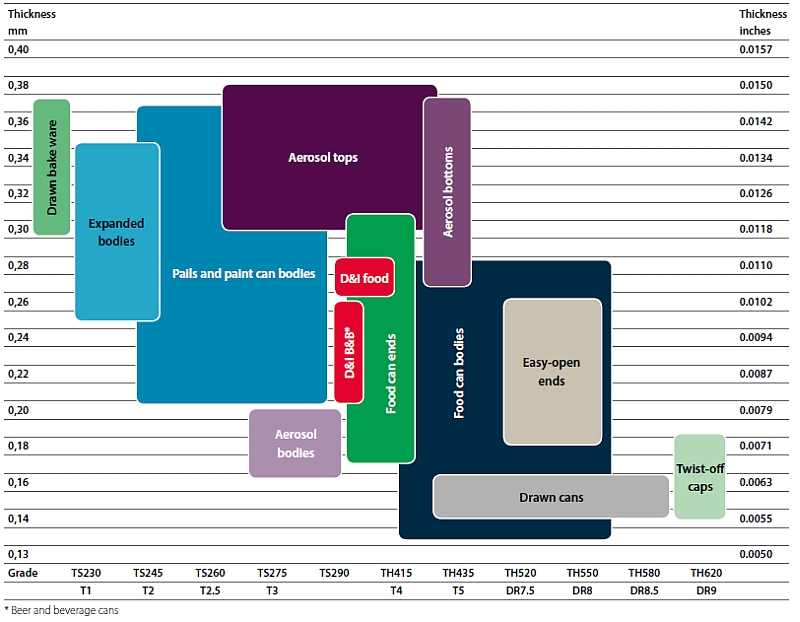

General specification window for packaging applications

tata-steel-packaging-product-specification-window

Services

Manual

ECCS

Services

Customer Technical Support

Our Customer Technical Support team supports you to get the most out of our packaging steels. Knowledgeable, approachable engineers provide practical advice to ensure the best product match for your application. We can work with you to optimise your processing efficiency and help improve your product’s performance. We offer:
