This new development from Tata Steel provides the specifier with a window system that looks great, provides a flush finish with the Trimapanel® cladding panel and that can be installed within the same cladding program reducing traditional delays in waiting for glazing materials and other trades.

The four sided mitred frame design inter locks with the Trimapanel® joint and can be treated as another panel element within the installation schedule. The glazing element can then be fitted at a later date. This provides a delay free cladding program and less risk for damage during the construction phase.

A further advantage to the client is replacement of the glazing if damage should occur during the building life. This can be achieved easily without costly disruption to the cladding elevation.

The window frame can be delivered and installed alongside the Trimapanel® allowing the elevation to be completed without delay. The window can be fitted from the inside at a later date, providing flexibility and time savings to the build program.

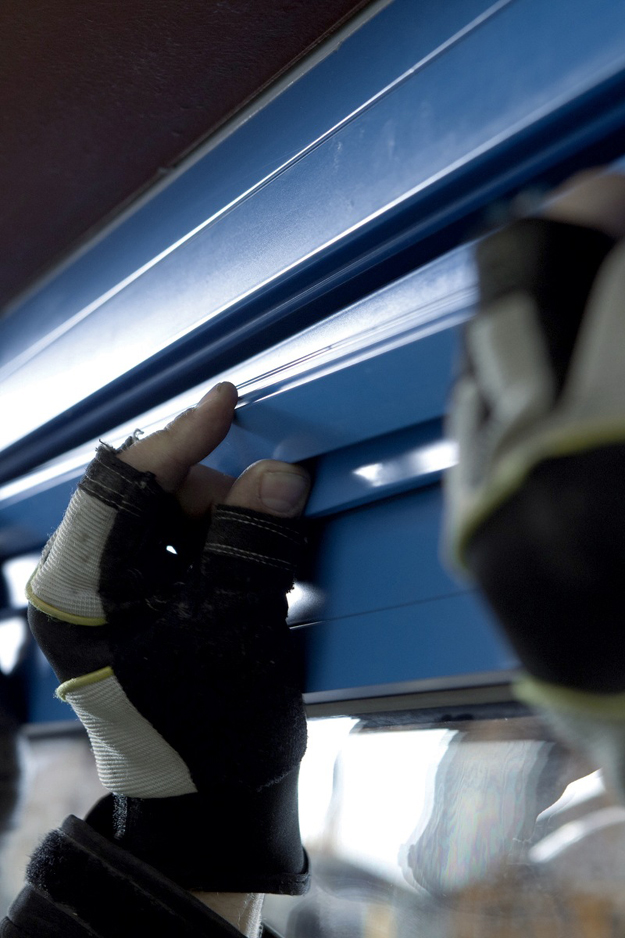

Framing clips and seals secure the window in place. These sections can be removed to allow replacement of the glazing element.

Glazing elements

The glazing elements available range from, Schueco units, which offer numerous special features and opening options, plain glazing, without opening and also polycarbonate.

The window specification and panel layout can be tailored to your requirements. Our Technical Department will be happy to discuss your requirements and draw up a specification. Please contact us on 01244 892130 for further details

For further information the Trimapanel Integrated Window and all Tata Steel metal cladding systems click here or can CPD on ‘Steel cladding systems for the non-domestic building envelope’.
