Fasteners are a vital component to ensure the safe installation of decks. The correct fixing as specified by the fastener manufacturer, to suit the application of fixing to cold rolled thin gauge purlins, hot rolled steel sections or timber supports.

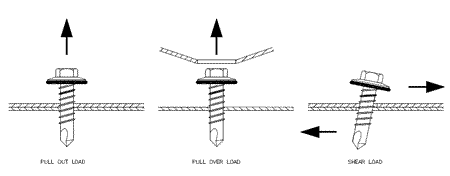

Self drilling/self tapping screws (commonly known as drill screws), must be a minimum 5.5mm diameter, available in carbon steel or austenitic stainless steel, and must resist all pullout, pullover and shear forces.

For compliance with non fragility requirements, fasteners should be positioned 50mm minimum in from the deck sheet end.

Alternatively:-

• Shot fired pins may be installed into hot rolled steel sections, subject to minimum flange requirements, as specified by fastener manufacturer.
• Side lap stitching screws may be replaced with rivets, as specified by fastener manufacturer.

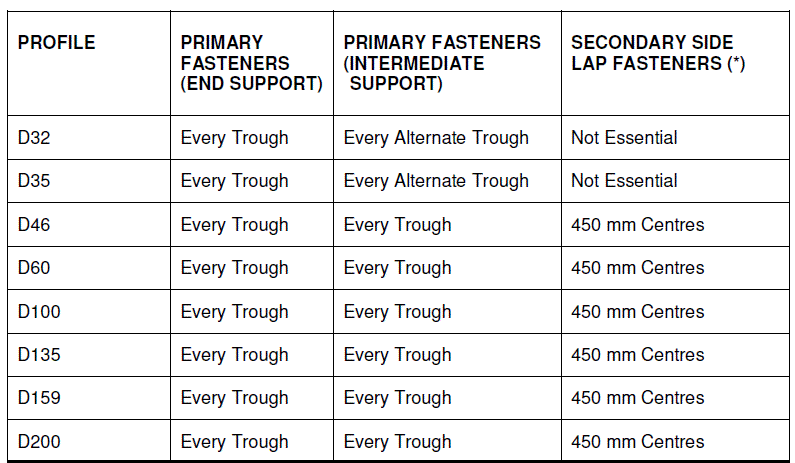

Decks are fixed to the support structure from above the deck. The table below indicates generic recommendations, which must be checked against specific project requirementsm especially for high wind suction loads, which may require more than one screw per trough, and reduced side lap centres when the deck acts in diaphragm.

(*) Fixing centres for side laps may be required to be reduced, subject to diaphragm design.

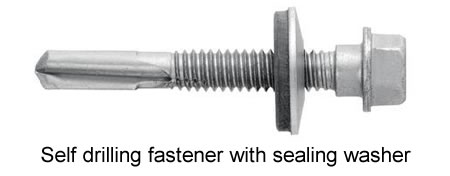

Where the deck is required to provide a vapour barrier, screws must be supplied with a sealing washer. If a separate vapour control membrane is installed above the deck, screws can be installed without washers.

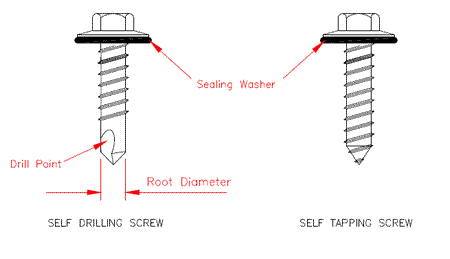

Self drilling screws are primarily used, suitable up to specific support flange thickness specified by fastener manufacturers. Where flange thickness is greater, self tapping screws are required, installed into a pre drilled pilot hole.

Aluminium decking
For aluminium roof decking, the fastener frequency is the same as for steel decks. However to prevent bi-metallic corrosion, austenitic stainless steel screws must be installed. A simple site test to determine the grade of screw is to check with a magnet, as stainless steel screws are non magnetic.

Tubular support structure
Decks can be installed above tubular structure, however this requires special consideration.

• The bearing support will be minimal, thus increasing the bending and reaction moment over the support.
• Location of screws is more difficult, any deviation from the apex position could cause the screw to twist out of alignment.
• The sheet end will be visible, any deviation in panel length tolerance may indicate staggered sheet ends. Manufacturing tolerances on length allow +10mm/-5mm up to 3000mm, and +20mm/-5mm for lengths over 3000mm.

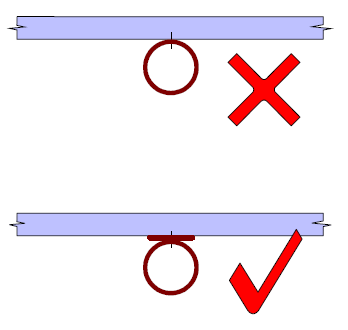

Therefore for tubular structure it is recommended that a flat plate is added, to provide a normal 100mm minimum flat bearing support.

Timber support structure
Screw installation into timber taken from BS 5268:Part 2: 2000

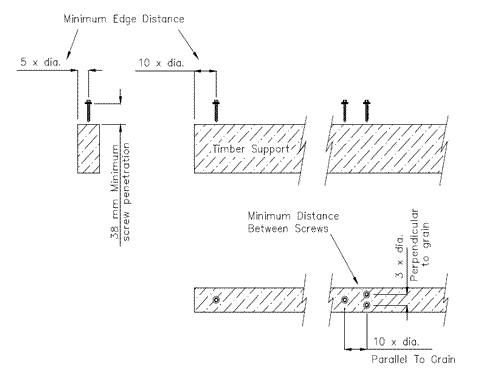

Timber may be treated with preservatives that could have an adverse effect on carbon steel screws; therefore it is recommended that austenitic stainless steel screws are specified for installation into timber, ensuring a minimum embedment and minimum edge distances as indicated below.

The screw diameter may be taken as the screw root diameter.

Concrete support structure

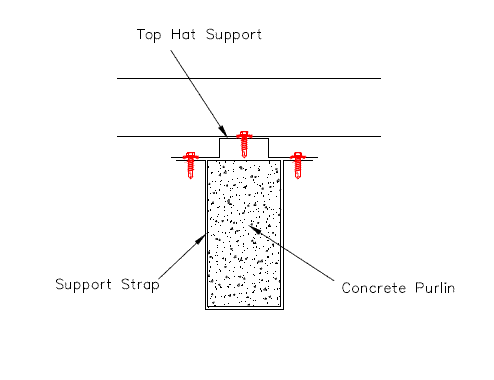

It is not recommended to drill directly into concrete purlins, unless agreed satisfactory by a structural engineer. Straps can be added to connect a top hat section for the support and attachment of decking.

Masonary wall support structure

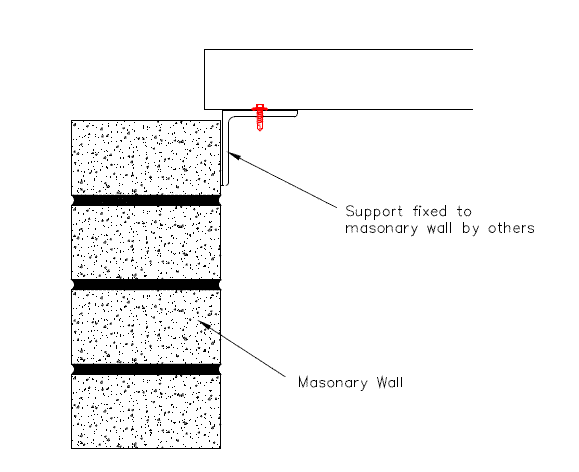

The level of masonary wall can not be guaranteed, therefore a steel section should be added to support decking. This allows the deck to be fixed with standard Tec fasteners, or shot fired pins to a suitable flange thickness.

For further information please do not hesitate to get in touch with our Technical Department
