Conveyance

Install®

Robust and reliable building and engineering services solution.

Install® hot-finished tube has been specifically developed for use by industry leaders, and is suitable for widespread conveyance uses – including building and mechanical services, and industrial pressure applications. Install® tube is a robust and reliable building and engineering services solution.

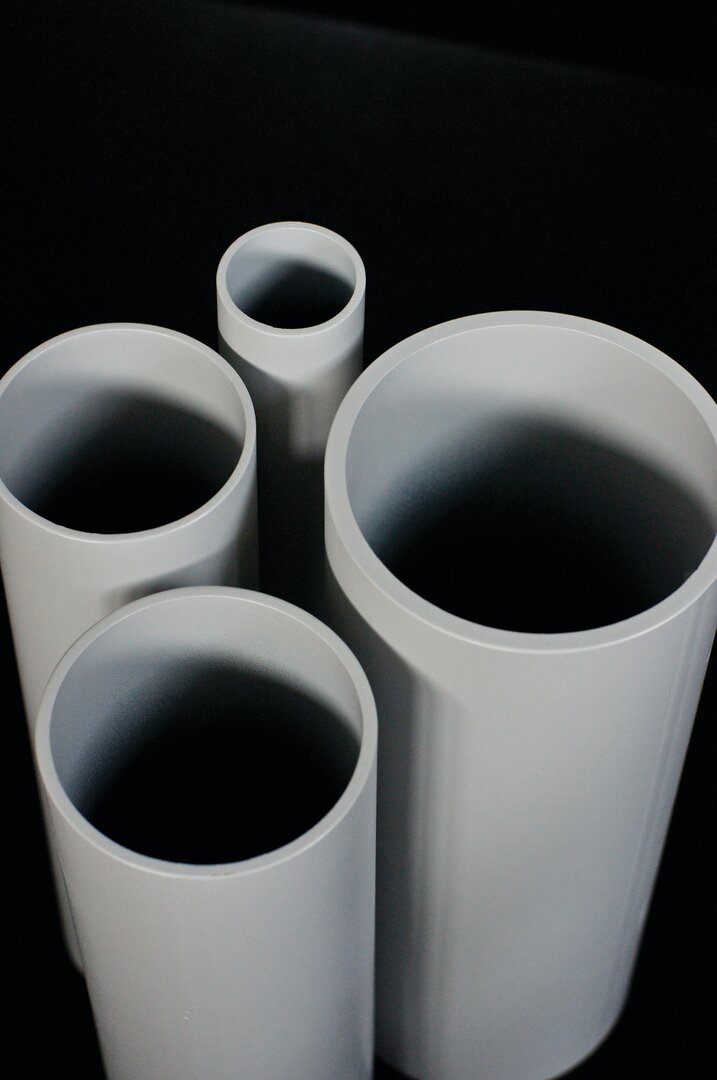

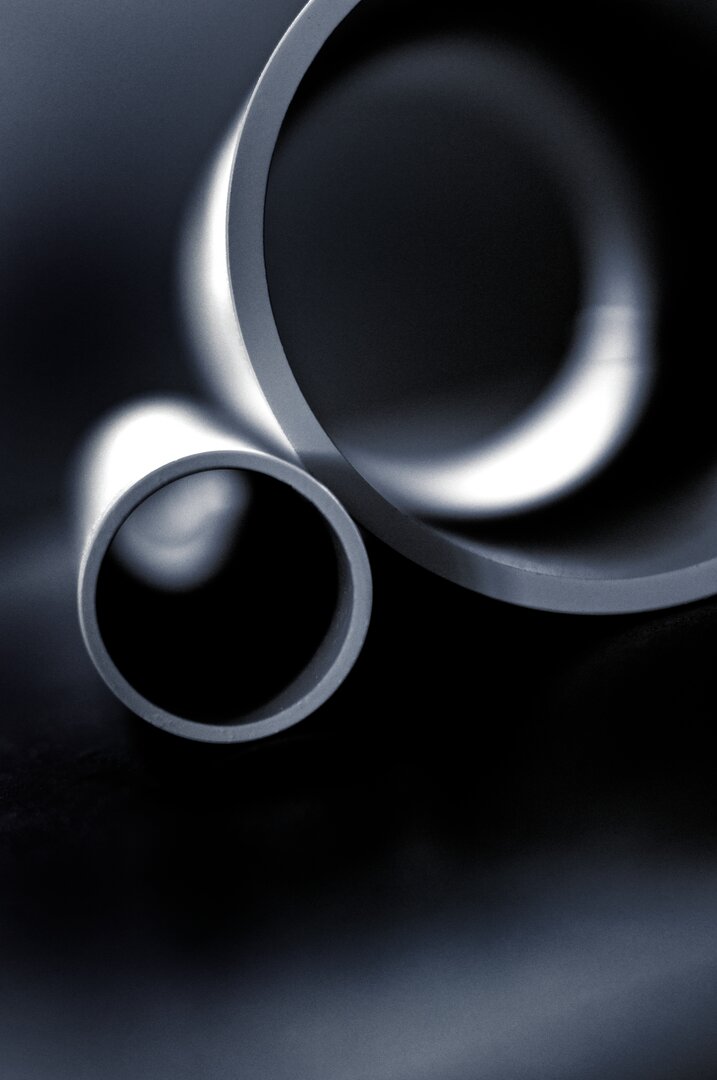

Conveyance tube brand Install product style image copyright Duncan Loughrey
Conveyance tube brand Install product style image copyright Duncan Loughrey
Product specification

US_EN-Construction-Product-Install Plus 235

Install Plus 235
Specification details

US_EN-Construction-Product-Install® Plus 235 | Product Overview

Product Overview
  • Recognised for its robustness and reliability.

  • Install® Plus 235 multi-certified, hot-finished has a wide variety of uses, including building and engineering services such as heating and ventilation, air conditioning, pressure systems as well as industrial pipework conveyance.

  • Recognised for its robustness and reliability, Install® Plus tube is the preferred choice for such applications.

US_EN-Construction-Product-Install Plus 235 | Features and benefits

Features and benefits
  • Our principal ‘gaslist’ tube for UK market applications.
  • Manufactured in accordance with a range of standards, including EN10255 and EN10217-2 to satisfy both Construction Products Regulation (CPR) and the Pressure Equipment Directive (PED) requirements, where applicable.
  • The perfect replacement for BS1387, which is now a withdrawn and unsupported standard.
  • Install Plus uses a higher 235MPa grade of steel (compared to lower 195 grade as per BS1387) delivering improved pressure integrity.
  • CE marked to CPR CAT 3 (gas/fuel) and CPR CAT 4 (water) for added confidence and application suitability.
  • Suitable for pressure applications and temperature range -20 to +300ºC.
  • Available in a wide range of sizes and weights.
  • We are able to offer exact lengths for bulk orders.
  • Available in a range of ends (plain, grooved or screwed and socketed) and surface finishes (red-painted or galvanised).
  • Other special surface colours and finishes, including external epoxy and polymer coatings may also be available, please contact us to discuss your requirements. (Note: certain size restrictions or minimum order quantities may apply)
  • Our pre-grooved tube offers project savings as well as other installation benefits.
  • Install Plus is fully technically supported with a wide range of available product datasheets.

US_EN-Construction-Product-Install Plus 235 | Mechanical properties

Mechanical properties

Summary of chemical composition (ladle analysis) and mechanical properties

Steel Grade Chemical Composition % Mechanical Properties
Steel
Name
C
max
Mn
max
P
max
S
max
Upper Yield Strength
ReH min (MPa)
Tenslie Strength
Rm (MPa)
Elongation
A min %
S235GT/P235GH 0.16 1.2 0,025 0,020 235 360 to 500 27

US_EN-Construction-Product-Install Plus 235 | Dimensions

Dimensions

Install® Plus tube data

  Heavy Weight Medium Weight
OD Nominal Bore Outside Diameter Wall Thickness Weight per metre # Wall Thickness Weight per metre #
  NB   OD   T Plain end/ grooved tube Screwed and socketed T Plain end/
grooved tube
Screwed and socketed
  (mm) (inch) Max (mm) Min (mm) (mm) (kg/m) (kg/m) (mm) (kg/m) (kg/m)
21.3 15 ½ 21.8 21 3.2 1.44 1.45 2.6 1.21 1.22
26.9 20 ¾ 27.3 26.5 3.2 1.87 1.88 2.6 1.57 1.57
33.7 25 1 34.2 33.3 4 2.93 2.95 3.2 2.41 2.43
42.4 32 42.9 42 4 3.79 3.82 3.2 3.1 3.13
48.3 40 48.8 47.9 4 4.37 4.41 3.2 3.56 3.6
60.3 50 2 60.8 59.7 4.5 6.19 6.26 3.6 5.03 5.1
76.1 65 76.6 75.3 4.5 7.93 8.05 3.6 6.42 6.54
88.9 80 3 89.5 88 5 10.3 10.5 4 8.36 8.53
114.3 100 4 115 113.1 5.4 14.5 14.8 4.5 12.2 12.5
139.7 125 5 140.8 138.5 5.4 17.9 18.4 5 16.6 17.1
165.1 150 6 166.5 163.9 5.4 21.3 21.9 5 19.8 20.4

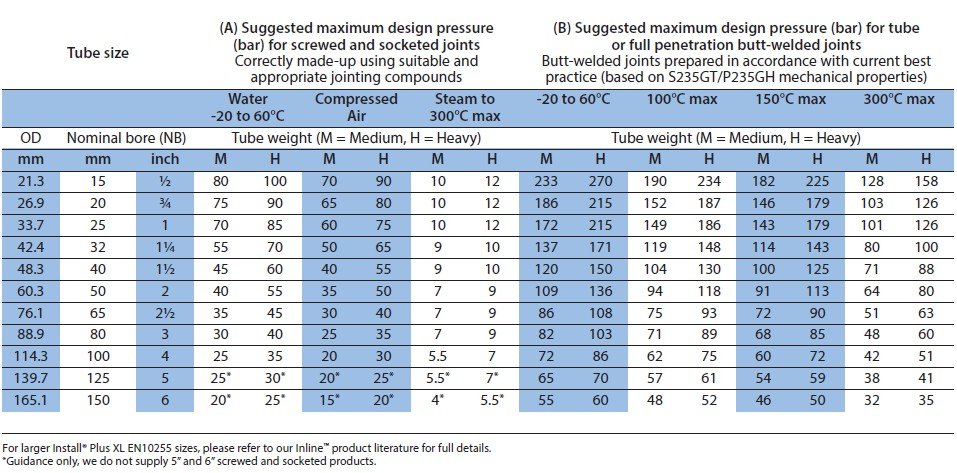

For larger Install® Plus XL EN10255 sizes, please refer to our Inline® product literature for full details.

US_EN-Construction-Product-Install 195

Install 195
Specification details

US_EN-Construction-Product-Install® 195 | Product Overview

Product Overview
  • Robust and reliable building and engineering services solution

  • Install® 195 hot-finished tube has been specifically developed for use by industry leaders, and is suitable for widespread conveyance uses – including building and mechanical services, and industrial pressure applications. Install® tube is a robust and reliable building and engineering services solution.

US_EN-Construction-Product-Install 195 | Features and benefits

Features and benefits
  • Our principal ‘gaslist’ tube for Mainland European (MLE) market applications.
  • Single certified product, manufactured in accordance to EN10255.
  • CE marked to CPD CAT 3 (gas/fuel) and CPD CAT 4 (water) for added confidence and application suitability.
  • 195 steel grade.
  • Manufactured in the UK.
  • Hot-finished process route, delivering consistent performance, mechanical properties and improved ductility, compared to competitor cold-formed options that may suffer from internal stresses and increased risk of failure during manipulation.
  • Suitable for pressure applications and temperature range -7 to +260ºC.
  • Available in a wide range of sizes, weights and wall thickness.
  • Available in a range of end (plain, grooved or screwed and socketed) and surface finishes (painted, polymer, epoxy or galvanised). (Note: certain size restrictions or minimum order quantities may apply.)
  • Backed up by technical experts who can offer advice on applications and product suitability.
  • Install® is fully technically supported with a range of available product brochures.
  • Certified to BES 6001 Responsible Sourcing standard.

US_EN-Construction-Product-Install 195 | Mechanical properties

Mechanical properties

Chemical composition (cast analysis) and mechanical properties

Steel Grade Chemical Composition % Mechanical Properties
Steel
Name
Steel
Number
C
max
Mn
max
P
max
S
max
Upper Yield Strength
ReH min (MPa)
Tenslie Strength
Rm (MPa)
Elongation
A min %
S195T 1.0026 0,20 1,40 0,035 0,030 195 320 to 520 20

US_EN-Construction-Product-Install 195 | Dimensions

Dimensions

Install® EN 10255 dimensional data



  Heavy Weight Medium Weight
Thread Size Specified Outside Diameter Nominal Bore Outside Diameter Wall Thickness Weight per metre # Wall Thickness Weight per metre #
R D NB OD   T Plain end/grooved tube Screwed and socketed T Plain end/grooved tube Screwed and socketed
(inch) (mm) (mm) Max (mm) Min (mm) (mm) (kg/m) (kg/m) (mm) (kg/m) (kg/m)
¼ 17.2 10 17.5 16.7 2.9 1.02 1.03 2.3 0.84 0.85
½ 21.3 15 21.8 21 3.2 1.44 1.45 2.6 1.21 1.22
¾ 26.9 20 27.3 26.5 3.2 1.87 1.88 2.6 1.56 1.57
1 33.7 25 34.2 33.3 4 2.93 2.95 3.2 2.41 2.43
42.4 32 42.9 42 4 3.79 3.82 3.2 3.1 3.13
48.3 40 48.8 47.9 4.5 4.37 4.41 3.2 3.56 3.6
2 60.3 50 60.8 59.7 4.5 6.19 6.26 3.6 5.03 5.1
76.1 65 76.6 75.3 5 7.93 8.05 3.6 6.42 6.54
3 88.9 80 89.5 88 5 10.3 10.5 4 8.36 8.53
4 114.3 100 115 113.1 5.4 14.5 14.8 4.5 12.2 12.5
5 139.7 125 140.8 138.5 5.4 17.9 18.4 5 16.6 17.1
6 165.1 150 166.5 163.9 5.4 21.3 21.9 5 19.8 20.4
